RB8532-16-1M3

Schaffner EMC, Inc.

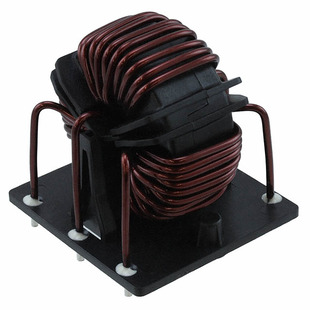

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RB8532-16-1M3
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 1.3MH 16A 3LN TH
Datasheets:	RB8532-16-1M3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8203 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8203 pcs

Reference Price (In US Dollars)

1 pcs: $4.06

10 pcs: $3.596

100 pcs: $3.429

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.06

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RB8532-16-1M3

Part Number	RB8532-16-1M3	Manufacturer	Schaffner EMC, Inc.
Description	CMC 1.3MH 16A 3LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8203 pcs	Data sheet	RB8532-16-1M3.pdf
Voltage Rating - DC	1000V (1kV)	Voltage Rating - AC	600V
Size / Dimension	2.283" L x 2.165" W (58.00mm x 55.00mm)	Series	RB
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 6 PC Pin	Other Names	811884 817-1665 RB8532161M3
Operating Temperature	-40°C ~ 125°C	Number of Lines	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	1.3mH @ 1kHz
Height (Max)	2.283" (58.00mm)	Filter Type	Power Line
Features	-	Detailed Description	1.3mH @ 1kHz 3 Line Common Mode Choke Through Hole 16A DCR 5.7 mOhm (Typ)
DC Resistance (DCR) (Max)	5.7 mOhm (Typ)	Current Rating (Max)	16A
Approvals	-
