RN242-0.5-02-82M

Schaffner EMC, Inc.

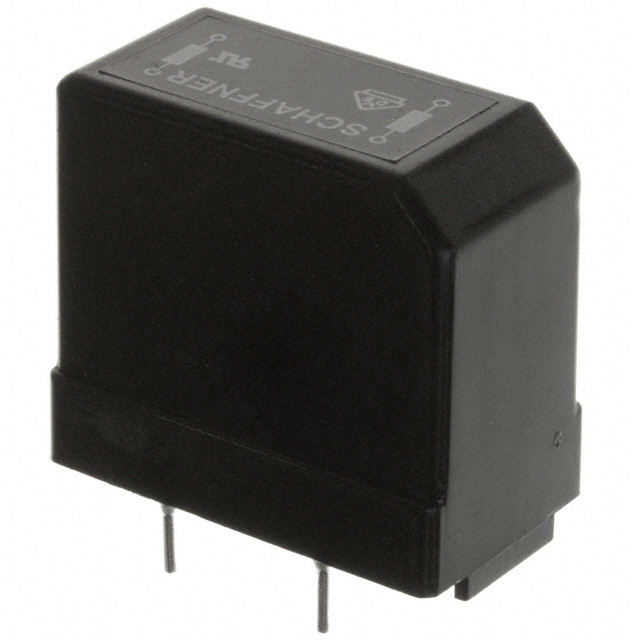

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RN242-0.5-02-82M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 82MH 500MA 2LN TH
Datasheets:	RN242-0.5-02-82M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31561 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31561 pcs

Reference Price (In US Dollars)

1 pcs: $0.966

10 pcs: $0.891

300 pcs: $0.535

600 pcs: $0.505

1200 pcs: $0.461

2700 pcs: $0.446

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.966

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RN242-0.5-02-82M

Part Number	RN242-0.5-02-82M	Manufacturer	Schaffner EMC, Inc.
Description	CMC 82MH 500MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31561 pcs	Data sheet	RN242-0.5-02-82M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	300V
Size / Dimension	1.220" L x 0.709" W (31.00mm x 18.00mm)	Series	RN
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	816575 817-2215
Operating Temperature	-40°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	82mH @ 10kHz
Height (Max)	1.362" (34.60mm)	Filter Type	Power Line
Features	-	Detailed Description	82mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 2.7 Ohm (Typ)
DC Resistance (DCR) (Max)	2.7 Ohm (Typ)	Current Rating (Max)	500mA
Approvals	ENEC, UR, VDE
