RS512-2-02

Schaffner EMC, Inc.Schaffner EMC, Inc.

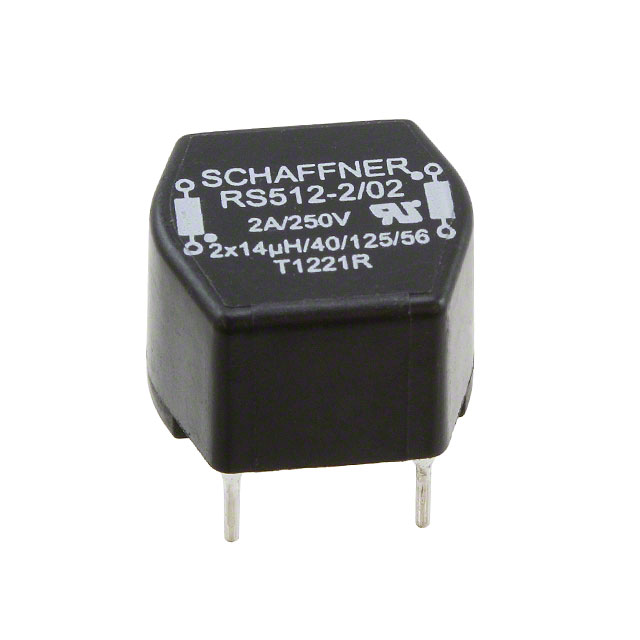

RS512-2-02 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RS512-2-02
Manufacturer/Brand: Schaffner EMC, Inc.
Product description COMMON MODE CHOKE 13UH 2A 2LN TH
Datasheets: RS512-2-02.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 15236 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 15236 pcs
Reference Price (In US Dollars)
1 pcs
$2.156
10 pcs
$1.96
100 pcs
$1.333
500 pcs
$1.215
1000 pcs
$1.158
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.156

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RS512-2-02

Part Number RS512-2-02 Manufacturer Schaffner EMC, Inc.
Description COMMON MODE CHOKE 13UH 2A 2LN TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 15236 pcs Data sheet RS512-2-02.pdf
Voltage Rating - DC - Voltage Rating - AC 250V
Size / Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm) Series RS
Ratings - Packaging Tray
Package / Case Horizontal, 4 PC Pin Other Names 290-141
800420
817-1846
RS512-2-02-ND
RS512202
Operating Temperature -40°C ~ 125°C Number of Lines 2
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Inductance @ Frequency 13µH @ 1kHz
Height (Max) 0.492" (12.50mm) Filter Type Signal Line
Features - Detailed Description 13µH @ 1kHz 2 Line Common Mode Choke Through Hole 2A (Typ) DCR 30 mOhm (Typ)
DC Resistance (DCR) (Max) 30 mOhm (Typ) Current Rating (Max) 2A (Typ)
Approvals UR, VDE
