PC713V0NIZXF

Sharp Microelectronics

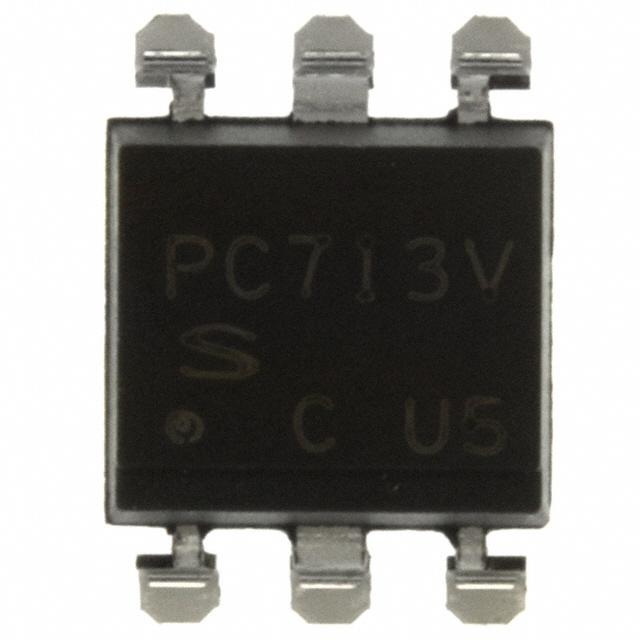

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC713V0NIZXF
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISO 5KV TRANS W/BASE 6SMD
Datasheets:	PC713V0NIZXF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	107086 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 107086 pcs

Reference Price (In US Dollars)

1 pcs: $0.299

10 pcs: $0.233

25 pcs: $0.192

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.299

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC713V0NIZXF

Part Number	PC713V0NIZXF	Manufacturer	Sharp Microelectronics
Description	OPTOISO 5KV TRANS W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	107086 pcs	Data sheet	PC713V0NIZXF.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tube	Package / Case	6-SMD, Gull Wing
Output Type	Transistor with Base	Other Names	425-2154-5
Operating Temperature	-25°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min)	50% @ 5mA	Current Transfer Ratio (Max)	600% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
