SBH21-NBPN-D13-ST-BK

Sullins Connector Solutions

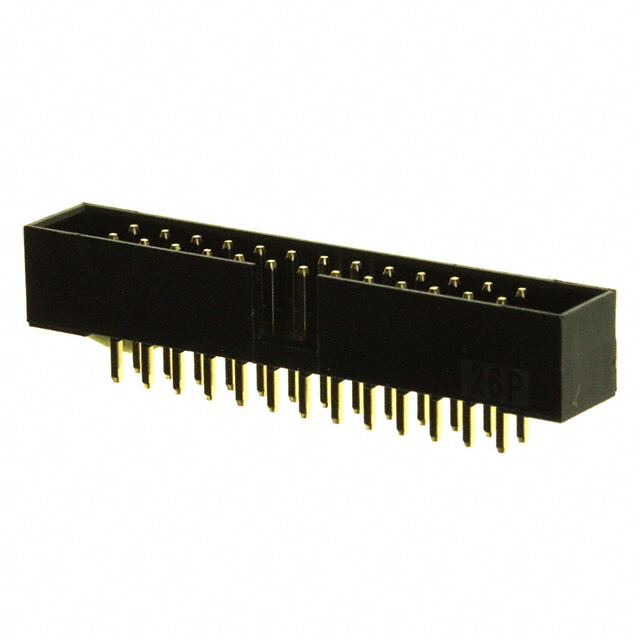

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SBH21-NBPN-D13-ST-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEAD 2MM 26POS GOLD
Datasheets:	1.SBH21-NBPN-D13-ST-BK.pdf 2.SBH21-NBPN-D13-ST-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	70425 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 70425 pcs

Reference Price (In US Dollars)

1 pcs: $0.436

10 pcs: $0.385

100 pcs: $0.332

500 pcs: $0.271

1000 pcs: $0.241

5000 pcs: $0.218

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.436

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SBH21-NBPN-D13-ST-BK

Part Number	SBH21-NBPN-D13-ST-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEAD 2MM 26POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70425 pcs	Data sheet	1.SBH21-NBPN-D13-ST-BK.pdf 2.SBH21-NBPN-D13-ST-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	SBH21	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	S9022 SBH21NBPND13STBK
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	6mm, 7mm, 7.05mm, 10.45mm, 14.35mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.220" (5.60mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 26 position 0.079" (2.00mm)
Current Rating	2A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.110" (2.79mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	Flash	Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
