CPFC85-1M15NP

Sumida Corporation

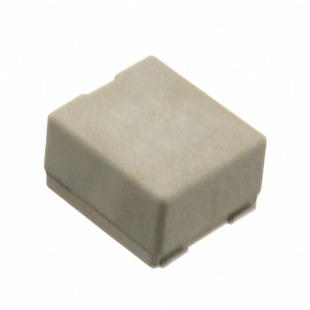

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CPFC85-1M15NP
Manufacturer/Brand:	Sumida Corporation
Product description	COMMON MODE CHOKE 4.7MH 2LN SMD
Datasheets:	CPFC85-1M15NP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30524 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30524 pcs

Reference Price (In US Dollars)

1 pcs: $1.068

10 pcs: $0.977

100 pcs: $0.64

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.068

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CPFC85-1M15NP

Part Number	CPFC85-1M15NP	Manufacturer	Sumida Corporation
Description	COMMON MODE CHOKE 4.7MH 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30524 pcs	Data sheet	CPFC85-1M15NP.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.366" L x 0.323" W (9.30mm x 8.20mm)	Series	CPFC
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Horizontal, 4 PC Pad	Other Names	308-1565-1
Operating Temperature	-	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	4.7mH @ 100kHz
Height (Max)	0.217" (5.50mm)	Filter Type	-
Features	-	Detailed Description	4.7mH @ 100kHz 2 Line Common Mode Choke Surface Mount DCR 2 Ohm
DC Resistance (DCR) (Max)	2 Ohm	Current Rating (Max)	-
Approvals	-
