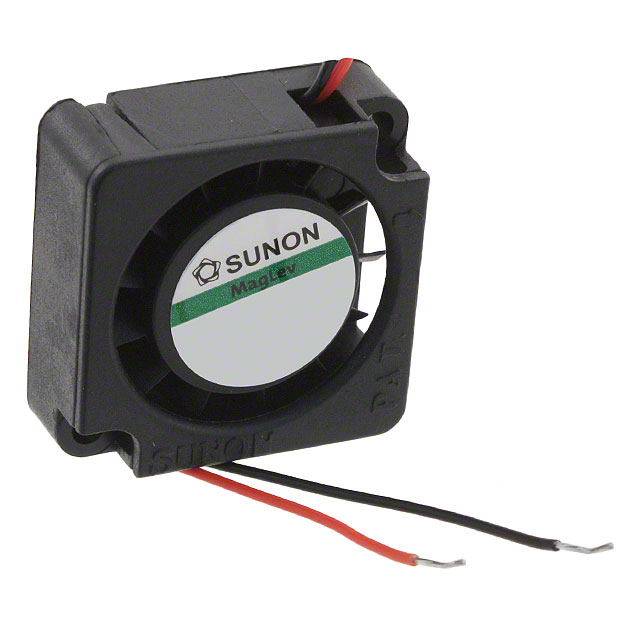

Sunon
| Part Number | GB0502PFV1-8.B2393.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 25X10MM 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7371 pcs | Data sheet | GB0502PFV1-8.B2393.GN.pdf |
| Width | 10.00mm | Weight | 0.017 lb (7.71g) |
| Voltage Range | 3.5 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.300 in H2O (74.7 Pa) |
| Size / Dimension | Square - 25mm L x 25mm H | Series | MagLev® GB |
| RPM | 12000 RPM | Power (Watts) | 500mW |
| Other Names | 259-1444 GB0502FPV1-8.B2393.GN GB0502FPV1-8.B2393.GN-ND GB0502PFV1-8.B2393.GN-ND GB0502PFV18B2393GN Q3128632 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 32.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Blower | Current Rating | 0.090A |
| Bearing Type | Vapo-Bearing™ | Approvals | CE, CUR, TUV, UL |
| Air Flow | 1.0 CFM (0.028m³/min) |
