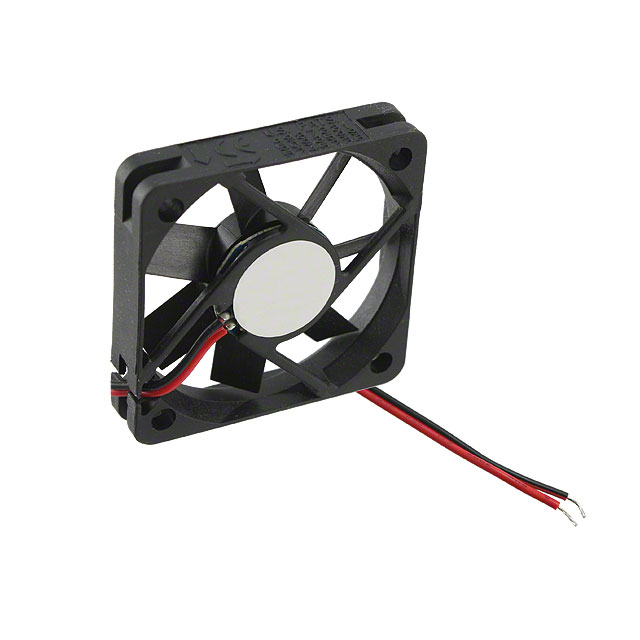

Part Number | KDE0505PFV2-11.MS.A.GN | Manufacturer | Sunon |
---|---|---|---|
Description | FAN AXIAL 50X10MM VAPO 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5412 pcs | Data sheet | 1.KDE0505PFV2-11.MS.A.GN.pdf2.KDE0505PFV2-11.MS.A.GN.pdf3.KDE0505PFV2-11.MS.A.GN.pdf |
Width | 10.00mm | Weight | 0.046 lb (20.87g) |
Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
Termination | 2 Wire Leads | Static Pressure | 0.110 in H2O (27.4 Pa) |
Size / Dimension | Square - 50mm L x 50mm H | Series | MagLev® KDE |
RPM | 4300 RPM | Power (Watts) | 800mW |
Other Names | 259-1345 E0550PFU24A-GRG KDE0505PFV2 11.MS.A.GN KDE0505PFV2.11.MS.A.GN KDE0505PFV211MSAGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 26.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Features | - | Fan Type | Tubeaxial |
Current Rating | 0.160A | Bearing Type | Vapo-Bearing™ |
Approvals | CE, CUR, TUV, UL | Air Flow | 11.0 CFM (0.308m³/min) |
