Sunon

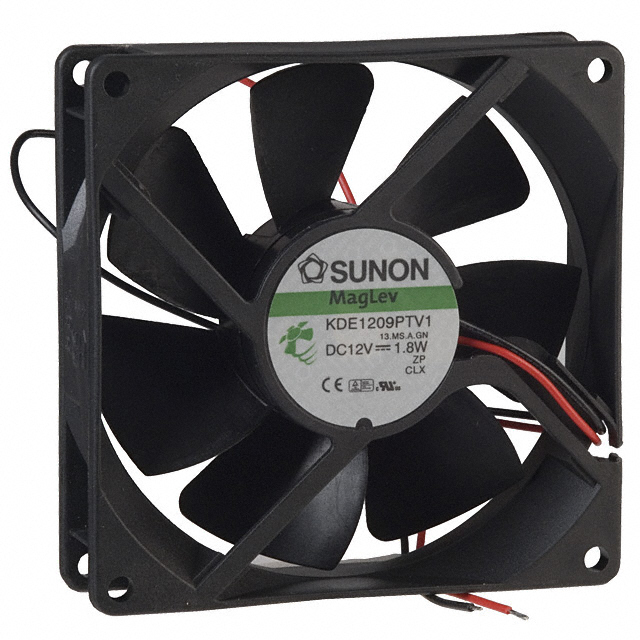

| Part Number | KDE1209PTV1.13.MS.A.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4014 pcs | Data sheet | 1.KDE1209PTV1.13.MS.A.GN.pdf2.KDE1209PTV1.13.MS.A.GN.pdf3.KDE1209PTV1.13.MS.A.GN.pdf |
| Width | 25.00mm | Weight | 0.209 lb (94.8g) |
| Voltage Range | 5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.160 in H2O (39.8 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | MagLev® KDE |
| RPM | 2800 RPM | Power (Watts) | 1.90W |
| Other Names | 259-1359 E1292PTU14A-GVA KDE1209PTV1 13.MS.A.GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 34.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.160A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 49.0 CFM (1.37m³/min) |
