Sunon

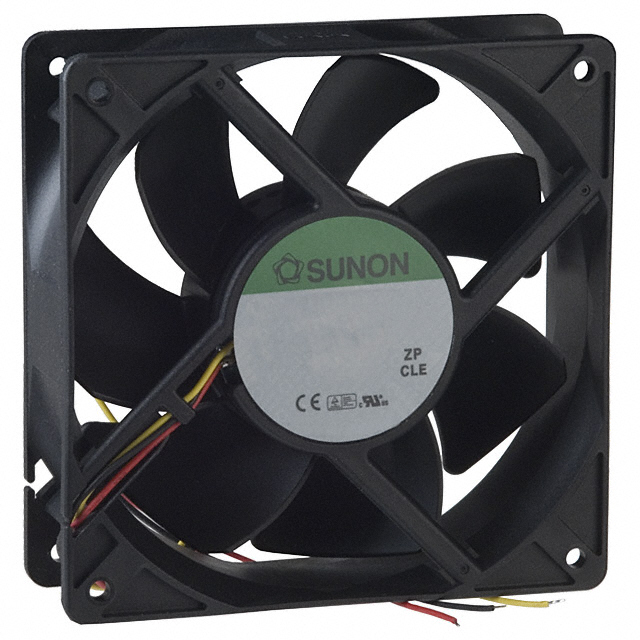

| Part Number | PMD1212PMB1-A.(2).F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3633 pcs | Data sheet | 1.PMD1212PMB1-A.(2).F.GN.pdf2.PMD1212PMB1-A.(2).F.GN.pdf |
| Width | 38.00mm | Weight | 0.727 lb (329.76g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.650 in H2O (161.9 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | PMD |
| RPM | 4200 RPM | Power (Watts) | 19.20W |
| Other Names | 259-1375 PMD1212PMB1-A(2).F.GN PMD1212PMB1A2FGN U12COPMB14AFARA |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 54.0 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 1.6A |
| Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
| Air Flow | 190.0 CFM (5.32m³/min) |
