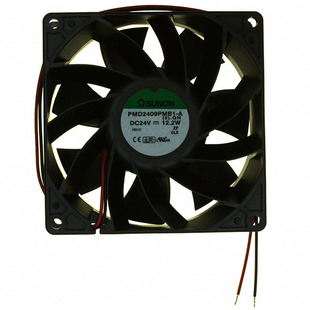

Part Number | PMD2409PMB1-A.(2).GN | Manufacturer | Sunon |
---|---|---|---|
Description | FAN AXIAL 92X38MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4303 pcs | Data sheet | 1.PMD2409PMB1-A.(2).GN.pdf2.PMD2409PMB1-A.(2).GN.pdf |
Width | 38.00mm | Weight | 0.419 lb (190.06g) |
Voltage Range | 10 ~ 27.6VDC | Voltage - Rated | 24VDC |
Termination | 2 Wire Leads | Static Pressure | 0.710 in H2O (176.9 Pa) |
Size / Dimension | Square - 92mm L x 92mm H | Series | PMD |
RPM | 4900 RPM | Power (Watts) | 12.20W |
Other Names | 259-1424 PMD2409PMB1-A (2).GN PMD2409PMB1-A.2.GN PMD2409PMB1A2GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 57.6 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | - | Material - Blade | - |
Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Features | - |
Fan Type | Tubeaxial | Current Rating | 0.510A |
Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
Air Flow | 120.2 CFM (3.37m³/min) |
