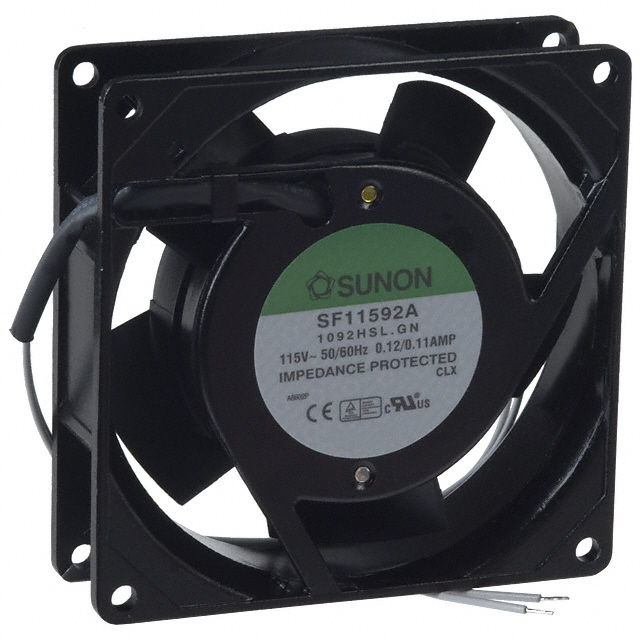

Part Number | SF11592A-1092HSL.GN | Manufacturer | Sunon |
---|---|---|---|
Description | FAN AXIAL 92X25MM 115VAC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5457 pcs | Data sheet | SF11592A-1092HSL.GN.pdf |
Width | 25.00mm | Weight | 0.617 lb (279.87g) |
Voltage Range | 85 ~ 125VAC | Voltage - Rated | 115VAC |
Termination | 2 Wire Leads | Static Pressure | 0.180 in H2O (44.8 Pa) |
Size / Dimension | Square - 92mm L x 92mm H | Series | SF |
RPM | 2750 RPM | Power (Watts) | 12.00W |
Other Names | 259-1382 F11592ATS1LTGRM SF11592A 1092HSL.GN SF11592A1092HSL.GN SF11592A1092HSLGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 39.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Features | - |
Fan Type | Tubeaxial | Current Rating | 0.110A |
Bearing Type | Sleeve | Approvals | CE, CUR, TUV, UL |
Air Flow | 36.0 CFM (1.01m³/min) |
