MCZ1210AH301L2

TDK Corporation

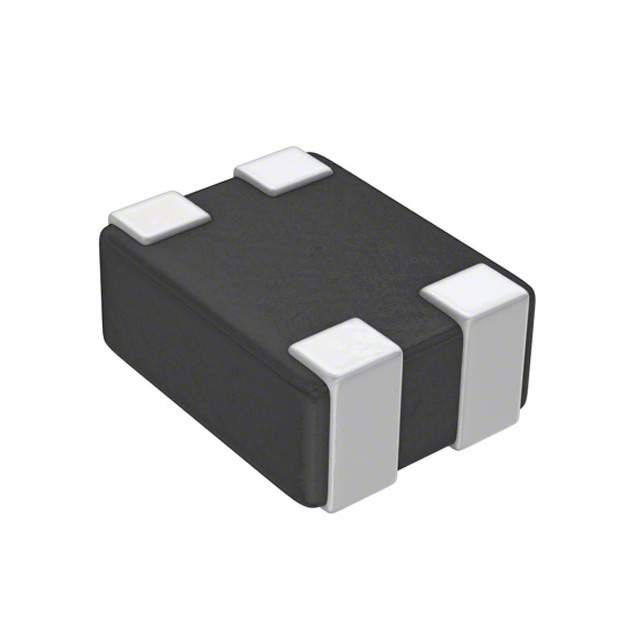

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MCZ1210AH301L2
Manufacturer/Brand:	TDK Corporation
Product description	CMC 100MA 2LN 300 OHM SMD
Datasheets:	1.MCZ1210AH301L2.pdf 2.MCZ1210AH301L2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	447690 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 447690 pcs

Reference Price (In US Dollars)

4000 pcs: $0.07

8000 pcs: $0.068

12000 pcs: $0.066

28000 pcs: $0.064

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.07

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MCZ1210AH301L2

Part Number	MCZ1210AH301L2	Manufacturer	TDK Corporation
Description	CMC 100MA 2LN 300 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	447690 pcs	Data sheet	1.MCZ1210AH301L2.pdf 2.MCZ1210AH301L2.pdf
Voltage Rating - DC	5V	Voltage Rating - AC	-
Size / Dimension	0.049" L x 0.039" W (1.25mm x 1.00mm)	Series	MCZ-AH
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	0504 (1210 Metric), 4 Lead	Other Names	445-9347-2 MCZ1210AH301L2T MCZ1210AH301L2T-ND
Operating Temperature	-40°C ~ 85°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance @ Frequency	300 Ohms @ 100MHz
Height (Max)	0.024" (0.60mm)	Filter Type	Signal Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 300 Ohms @ 100MHz 100mA DCR 4.5 Ohm
DC Resistance (DCR) (Max)	4.5 Ohm	Current Rating (Max)	100mA
Approvals	-
