PD42-1-1140-TMCL

TRINAMIC Motion Control GmbHTRINAMIC Motion Control GmbH

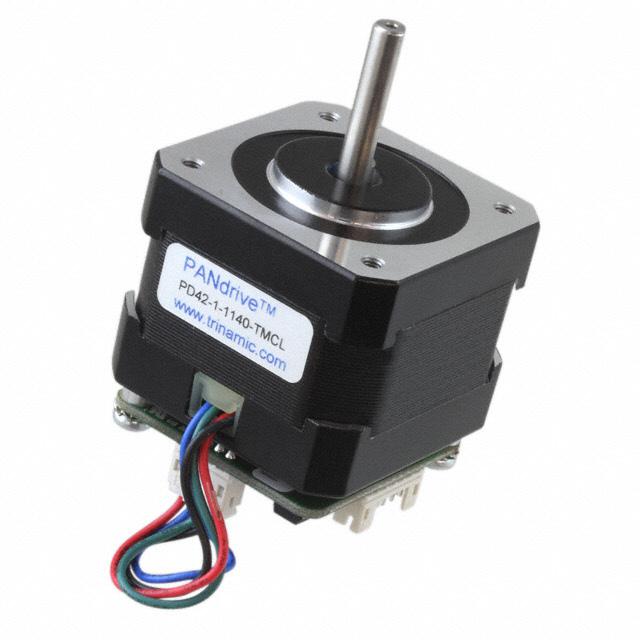

PD42-1-1140-TMCL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PD42-1-1140-TMCL
Manufacturer/Brand: TRINAMIC Motion Control GmbH
Product description STEPPER MOTOR HYBRID BIPOLAR 24V
Datasheets: 1.PD42-1-1140-TMCL.pdf2.PD42-1-1140-TMCL.pdf3.PD42-1-1140-TMCL.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 425 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 425 pcs
Reference Price (In US Dollars)
1 pcs
$83.12
10 pcs
$80.711
25 pcs
$78.301
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$83.12

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PD42-1-1140-TMCL

Part Number PD42-1-1140-TMCL Manufacturer TRINAMIC Motion Control GmbH
Description STEPPER MOTOR HYBRID BIPOLAR 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 425 pcs Data sheet 1.PD42-1-1140-TMCL.pdf2.PD42-1-1140-TMCL.pdf3.PD42-1-1140-TMCL.pdf
Weight 0.486 lb (220.45g) Voltage - Rated 24VDC
Type Hybrid Torque - Holding (oz-in / mNm) 31.2 / 220
Termination Style Wire Leads with Connector Steps per Revolution 200
Step Angle 1.8° Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Series PANdrive™ Rotor Inertia -
Other Names 1460-1099
30-0185
30-0259
Operating Temperature -
NEMA Frame Size 17 Mounting Hole Spacing -
Moisture Sensitivity Level (MSL) 1 (Unlimited) Length - Shaft and Bearing 0.945" (24.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Features Integrated Controller, Flatted Shaft
Diameter - Shaft 0.197" (5.00mm) Detailed Description Bipolar Stepper Motor 200 Step 2A 24VDC
Current Rating 2A Coil Type Bipolar
Approvals - Accuracy -
