PD57-2-1161

TRINAMIC Motion Control GmbH

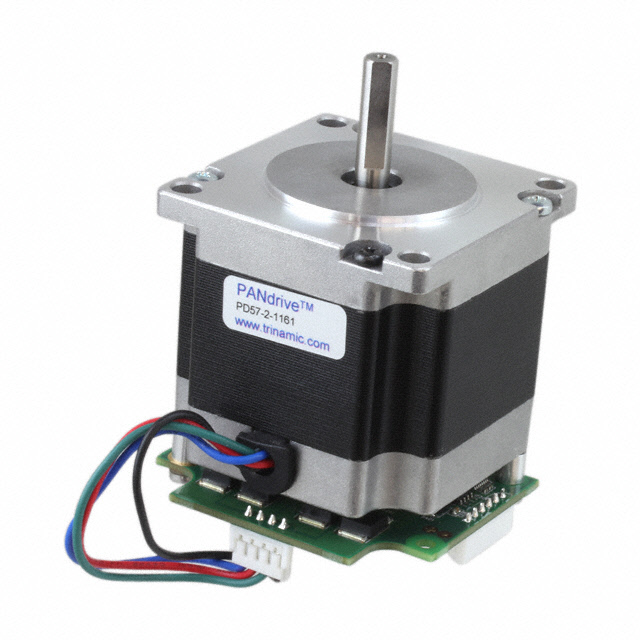

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD57-2-1161
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEPPER MOTOR HYBRID BIPOLAR 24V
Datasheets:	1.PD57-2-1161.pdf 2.PD57-2-1161.pdf 3.PD57-2-1161.pdf 4.PD57-2-1161.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	431 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 431 pcs

Reference Price (In US Dollars)

1 pcs: $73.268

10 pcs: $71.143

25 pcs: $69.019

50 pcs: $66.894

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$73.268

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD57-2-1161

Part Number	PD57-2-1161	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	431 pcs	Data sheet	1.PD57-2-1161.pdf 2.PD57-2-1161.pdf 3.PD57-2-1161.pdf 4.PD57-2-1161.pdf
Weight	-	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	143.05 / 1010
Termination Style	Wire Leads with Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Series	PANdrive™	Rotor Inertia	-
Other Names	1460-1119 30-0175	Operating Temperature	-
NEMA Frame Size	24	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	0.945" (24.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Integrated Controller, Flatted Shaft
Diameter - Shaft	0.250" (6.35mm)	Detailed Description	Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 24VDC
Current Rating	2.8A	Coil Type	Bipolar
Approvals	-	Accuracy	-
