QSH4218-51-10-049

TRINAMIC Motion Control GmbH

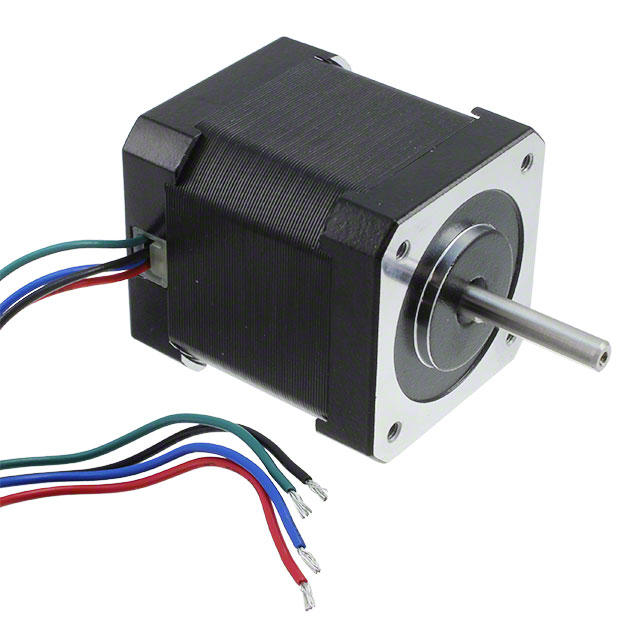

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH4218-51-10-049
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEPPER MOTOR HYBRID BIPOLAR 5V
Datasheets:	QSH4218-51-10-049.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1774 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1774 pcs

Reference Price (In US Dollars)

1 pcs: $16.42

10 pcs: $15.852

25 pcs: $15.569

100 pcs: $15.06

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$16.42

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH4218-51-10-049

Part Number	QSH4218-51-10-049	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEPPER MOTOR HYBRID BIPOLAR 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1774 pcs	Data sheet	QSH4218-51-10-049.pdf
Weight	0.772 lb (350.17g)	Voltage - Rated	5VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	69.39 / 490
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.665" x 1.665" (42.30mm x 42.30mm)
Series	QMot QSH4218	Rotor Inertia	68gcm²
Other Names	1460-1076 50-0030	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (30.99mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	0.945" (24.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Flatted Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Bipolar Stepper Motor 200 Step 1A 5VDC
Current Rating	1A	Coil Type	Bipolar
Coil Resistance	5 Ohms	Approvals	CE
Accuracy	±5%
