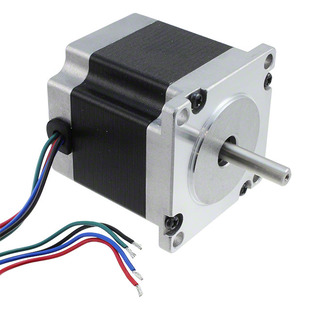

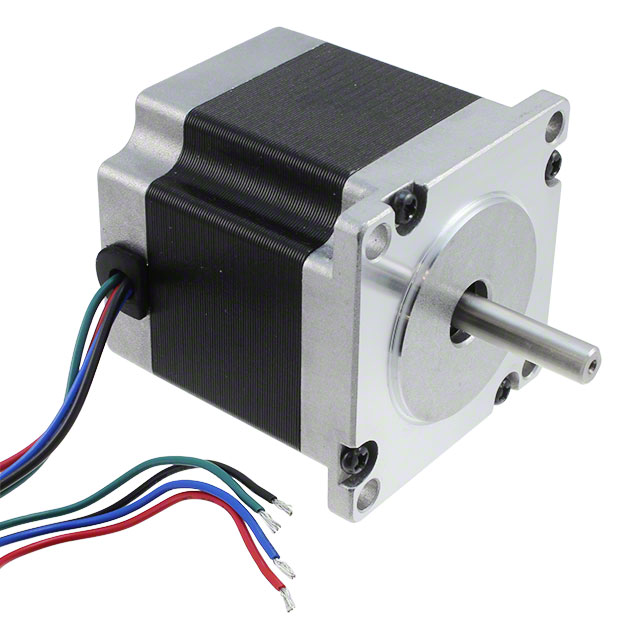

QSH5718-56-28-126

TRINAMIC Motion Control GmbH

Image may be representation. See specifications for product details.

Product Overview

Part Number:	QSH5718-56-28-126
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEP MOTOR HYBRID BIPOLAR 2.5V
Datasheets:	QSH5718-56-28-126.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1665 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1665 pcs

Reference Price (In US Dollars)

1 pcs: $21.298

10 pcs: $20.565

25 pcs: $20.198

100 pcs: $19.537

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$21.298

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of QSH5718-56-28-126

Part Number	QSH5718-56-28-126	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEP MOTOR HYBRID BIPOLAR 2.5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1665 pcs	Data sheet	QSH5718-56-28-126.pdf
Weight	1.6 lbs (725.7g)	Voltage - Rated	2.5VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	178.43 / 1260
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
Series	QMot QSH5718	Rotor Inertia	300gcm²
Other Names	1460-1079 50-0062	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	23	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	0.945" (24.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Flatted Shaft
Diameter - Shaft	0.250" (6.35mm)	Detailed Description	Bipolar Stepper Motor Frame Size 23 200 Step 2.8A 2.5VDC
Current Rating	2.8A	Coil Type	Bipolar
Coil Resistance	900 mOhms	Approvals	CE
Accuracy	±5%
