DBL106G C1G

TSC (Taiwan Semiconductor)TSC (Taiwan Semiconductor)

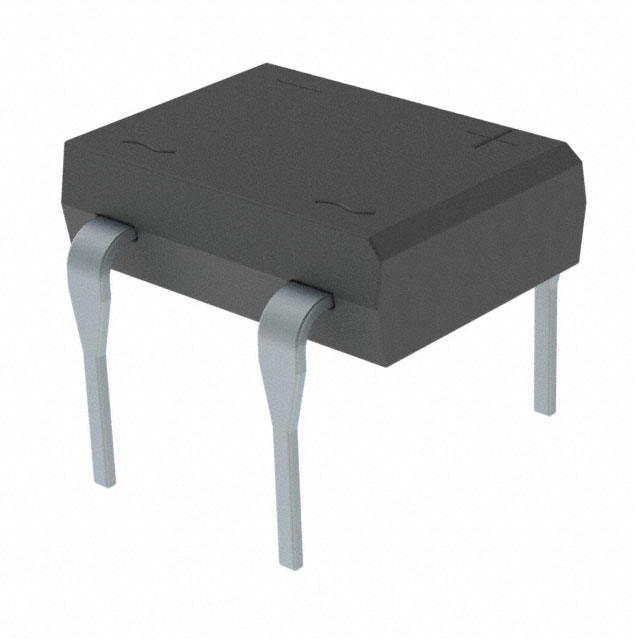

DBL106G C1G Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: DBL106G C1G
Manufacturer/Brand: TSC (Taiwan Semiconductor)
Product description BRIDGE RECT 1PHASE 800V 1A DBL
Datasheets: DBL106G C1G.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 180034 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 180034 pcs
Reference Price (In US Dollars)
1 pcs
$0.165
10 pcs
$0.138
25 pcs
$0.121
100 pcs
$0.104
300 pcs
$0.09
500 pcs
$0.076
1000 pcs
$0.059
2500 pcs
$0.054
5000 pcs
$0.05
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.165

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of DBL106G C1G

Part Number DBL106G C1G Manufacturer TSC (Taiwan Semiconductor)
Description BRIDGE RECT 1PHASE 800V 1A DBL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 180034 pcs Data sheet DBL106G C1G.pdf
Voltage - Peak Reverse (Max) 800V Voltage - Forward (Vf) (Max) @ If 1.1V @ 15A
Technology Standard Supplier Device Package DBL
Series - Packaging Tube
Package / Case 4-DIP (0.300", 7.62mm) Other Names DBL106G C1G-ND
DBL106GC1G
Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Diode Type Single Phase Detailed Description Bridge Rectifier Single Phase Standard 800V Through Hole DBL
Current - Reverse Leakage @ Vr 2µA @ 800V Current - Average Rectified (Io) 1A
