TLF9UAH502WR32K1

Taiyo Yuden

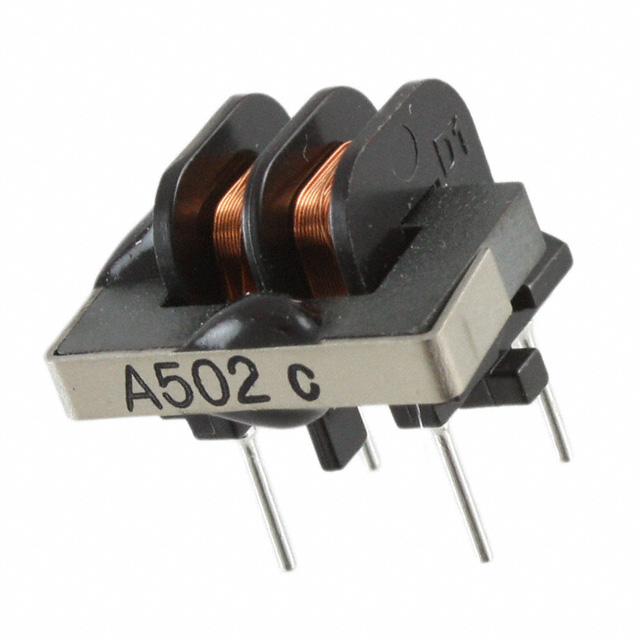

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLF9UAH502WR32K1
Manufacturer/Brand:	Taiyo Yuden
Product description	COMMON MODE CHOKE 320MA 2LN TH
Datasheets:	1.TLF9UAH502WR32K1.pdf 2.TLF9UAH502WR32K1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	95354 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 95354 pcs

Reference Price (In US Dollars)

1 pcs: $0.299

10 pcs: $0.262

100 pcs: $0.187

500 pcs: $0.157

1000 pcs: $0.127

2500 pcs: $0.12

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.299

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLF9UAH502WR32K1

Part Number	TLF9UAH502WR32K1	Manufacturer	Taiyo Yuden
Description	COMMON MODE CHOKE 320MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95354 pcs	Data sheet	1.TLF9UAH502WR32K1.pdf 2.TLF9UAH502WR32K1.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.669" L x 0.591" W (17.00mm x 15.00mm)	Series	TLF9
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	587-2798 LM TLF 9UAH502WR32K1
Operating Temperature	-25°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	0.472" (12.00mm)
Filter Type	Power Line	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 320mA DCR 2.5 Ohm	DC Resistance (DCR) (Max)	2.5 Ohm
Current Rating (Max)	320mA	Approvals	-
