Toshiba Semiconductor and Storage

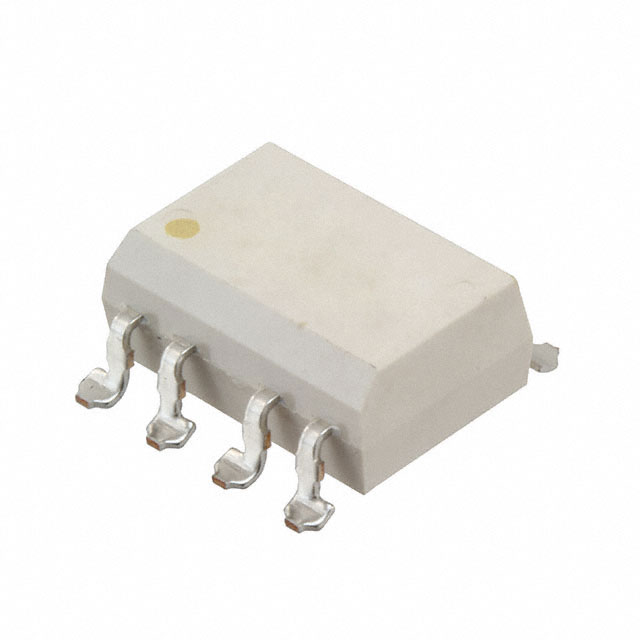

| Part Number | TLP2631TP1F | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 2.5KV 2CH OPEN COLL 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101577 pcs | Data sheet | TLP2631TP1F.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.65V | Supplier Device Package | 8-SMD |
| Series | - | Rise / Fall Time (Typ) | 30ns, 30ns |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing | Output Type | Open Collector, Schottky Clamped |
| Other Names | TLP2631 (TP1,F) TLP2631(TP1,F) TLP2631TP1FTR |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 2/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 2500Vrms 2 Channel 1kV/µs CMTI 8-SMD | Data Rate | 10MBd |
| Current - Output / Channel | 16mA | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 1kV/µs |
