TLP5774(TP,E

Toshiba Semiconductor and Storage

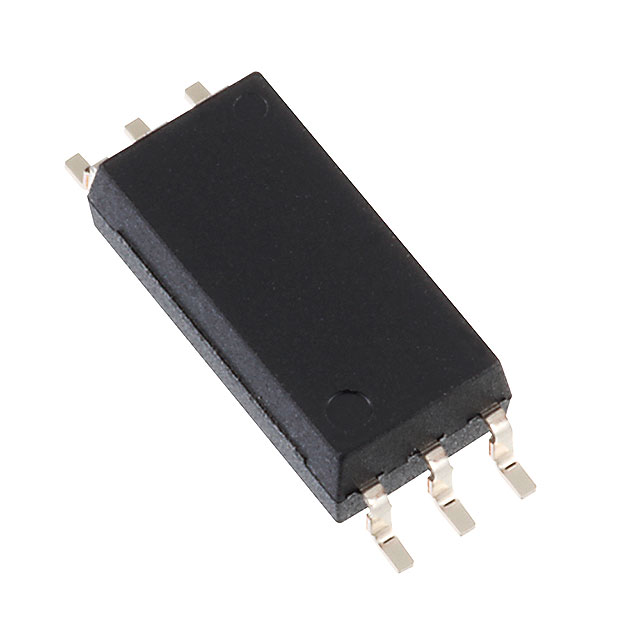

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP5774(TP,E
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 5KV 1CH GATE DRIVER 6SO
Datasheets:	TLP5774(TP,E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	104496 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 104496 pcs

Reference Price (In US Dollars)

1500 pcs: $0.367

3000 pcs: $0.347

7500 pcs: $0.333

10500 pcs: $0.327

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.367

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP5774(TP,E

Part Number	TLP5774(TP,E	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 5KV 1CH GATE DRIVER 6SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	104496 pcs	Data sheet	TLP5774(TP,E.pdf
Voltage - Supply	10 V ~ 30 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.65V	Technology	Optical Coupling
Supplier Device Package	6-SO	Series	-
Rise / Fall Time (Typ)	15ns, 8ns	Pulse Width Distortion (Max)	50ns
Propagation Delay tpLH / tpHL (Max)	150ns, 150ns	Packaging	Tape & Reel (TR)
Package / Case	6-SOIC (0.295", 7.50mm Width)	Other Names	TLP5774(TP,E(T TLP5774(TPETR
Operating Temperature	-40°C ~ 110°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	4A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
Current - Peak Output	4A	Current - Output High, Low	3A, 3A
Current - DC Forward (If) (Max)	8mA	Common Mode Transient Immunity (Min)	35kV/µs
Approvals	CQC, cUR, UR, VDE
