TLP705A(F)

Toshiba Semiconductor and Storage

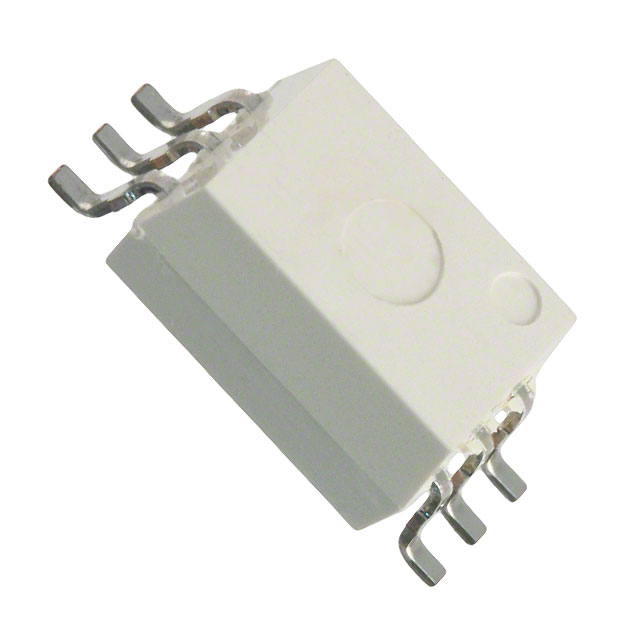

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP705A(F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 5KV GATE DRIVER 6SDIP GW
Datasheets:	TLP705A(F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56657 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 56657 pcs

Reference Price (In US Dollars)

1 pcs: $0.572

10 pcs: $0.465

25 pcs: $0.357

100 pcs: $0.322

300 pcs: $0.286

500 pcs: $0.243

1000 pcs: $0.20

2500 pcs: $0.19

5000 pcs: $0.186

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.572

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP705A(F)

Part Number	TLP705A(F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 5KV GATE DRIVER 6SDIP GW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56657 pcs	Data sheet	TLP705A(F).pdf
Voltage - Supply	10 V ~ 30 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.57V	Technology	Optical Coupling
Supplier Device Package	6-SDIP	Series	-
Rise / Fall Time (Typ)	35ns, 15ns	Pulse Width Distortion (Max)	50ns
Propagation Delay tpLH / tpHL (Max)	170ns, 170ns	Packaging	Tube
Package / Case	6-SOIC (0.268", 6.80mm Width)	Other Names	TLP705A (F) TLP705AF
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP
Current - Peak Output	600mA	Current - Output High, Low	400mA, 400mA
Current - DC Forward (If) (Max)	25mA	Common Mode Transient Immunity (Min)	20kV/µs
Approvals	cUL, UL
