Toshiba Semiconductor and Storage
| Part Number | TPH1110FNH,L1Q | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 250V 15A 8-SOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53358 pcs | Data sheet | TPH1110FNH,L1Q.pdf |
| Vgs(th) (Max) @ Id | 4V @ 300µA | Vgs (Max) | ±20V |

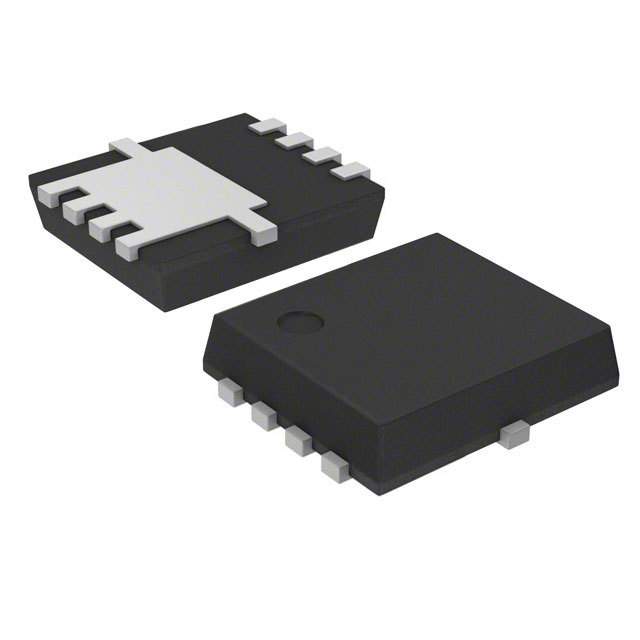

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-SOP Advance (5x5) |
| Series | U-MOSVIII-H | Rds On (Max) @ Id, Vgs | 112 mOhm @ 5A, 10V |
| Power Dissipation (Max) | 1.6W (Ta), 57W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN | Other Names | TPH1110FNH,L1QCT TPH1110FNH,L1QCT-ND TPH1110FNHL1QCT |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 100V | Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 250V |
| Detailed Description | N-Channel 250V 10A (Ta) 1.6W (Ta), 57W (Tc) Surface Mount 8-SOP Advance (5x5) | Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
