F-54X

Triad Magnetics

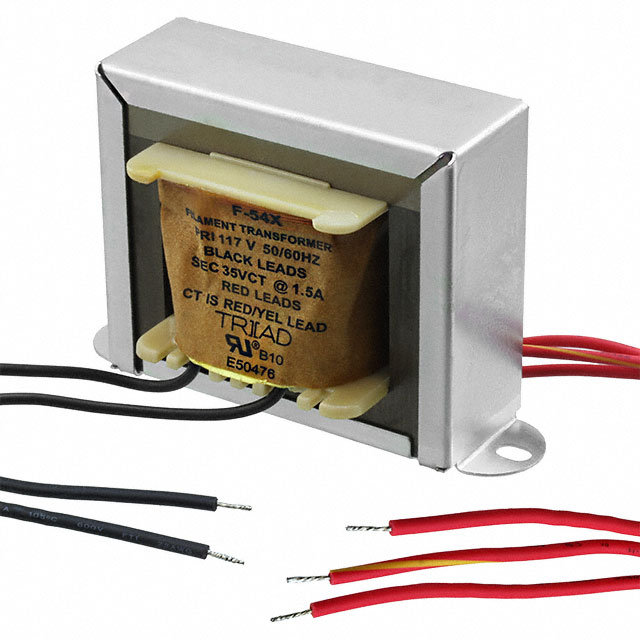

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-54X
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-54X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5701 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5701 pcs

Reference Price (In US Dollars)

1 pcs: $6.508

10 pcs: $5.741

25 pcs: $5.55

50 pcs: $4.976

100 pcs: $4.784

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.508

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-54X

Part Number	F-54X	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5701 pcs	Data sheet	F-54X.pdf
Weight	2.2 lbs (997.9g)	Voltage - Secondary (Full Load)	35V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	101.60mm L x 57.15mm W	Series	Single Secondary
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	52.5 VA	Other Names	237-2001
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	65.86mm
Current - Output (Max)	800mA	Center Tap	Yes
