F-55X

Triad Magnetics

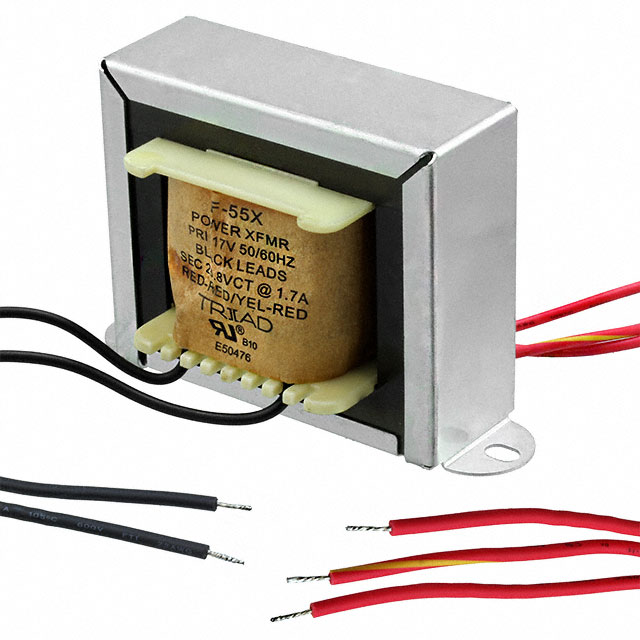

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-55X
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-55X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5806 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5806 pcs

Reference Price (In US Dollars)

8 pcs: $6.507

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.507

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-55X

Part Number	F-55X	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5806 pcs	Data sheet	F-55X.pdf
Weight	2.3 lbs (1kg)	Voltage - Secondary (Full Load)	26.8V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	101.60mm L x 57.15mm W	Series	Single Secondary
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	45.6 VA	Other Names	237-2002
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	65.86mm
Current - Output (Max)	1.7A	Center Tap	Yes
