3M

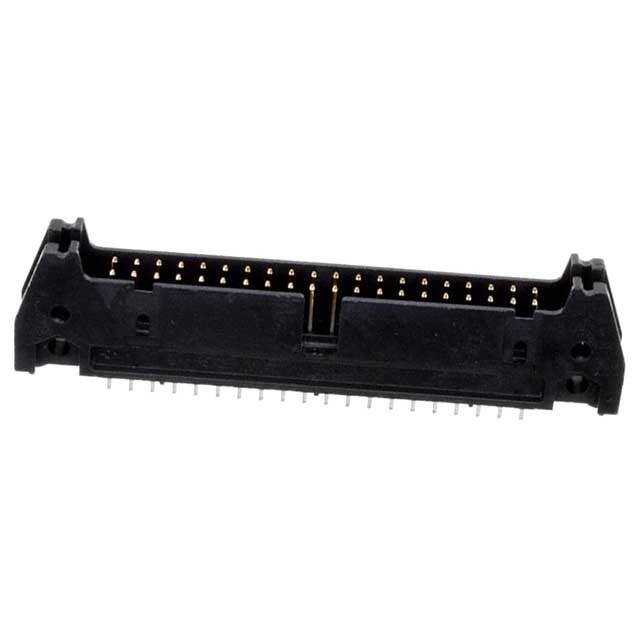

| Part Number | N3432-6002RB | Manufacturer | 3M |
|---|---|---|---|
| Description | PROTECT HEADER STRGT 40 CONTACT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18386 pcs | Data sheet | 1.N3432-6002RB.pdf2.N3432-6002RB.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | 3000 |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.112" (2.84mm) | Other Names | 5111165077 51111650776 80400027886 MHS40L N34326002RB |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 40 | Number of Contacts | 200µin (5.08µm) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Part Number | N3432-6002RB | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | 0.652" (16.56mm) |
| Features | Keying Slot, Mounting Flange | Expanded Description | 40 Positions Header Connector 0.100" (2.54mm) Through Hole Gold |
| Description | PROTECT HEADER STRGT 40 CONTACT | Current Rating | 1.75A |
| Current - Max/Contact | - | Contact Length - Post | 0.240" (6.10mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 30µin (0.76µm) |
| Contact Finish - Mating | 0.680" (17.27mm) | Connector Type | Header |
| Actual Diameter | Black |
