FGL35N120FTDTU

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

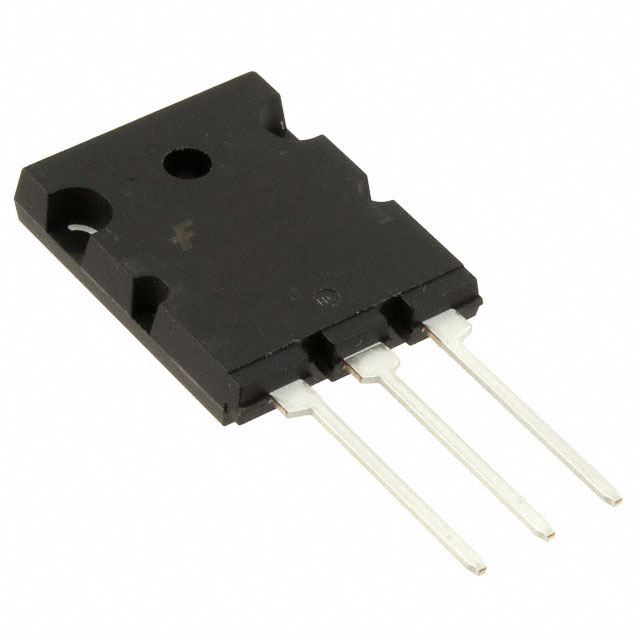

FGL35N120FTDTU Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FGL35N120FTDTU
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description IGBT 1200V 70A 368W TO264
Datasheets: FGL35N120FTDTU.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 10169 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 10169 pcs
Reference Price (In US Dollars)
1 pcs
$3.512
10 pcs
$3.172
375 pcs
$2.508
750 pcs
$2.286
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$3.512

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FGL35N120FTDTU

Part Number FGL35N120FTDTU Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 1200V 70A 368W TO264 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 10169 pcs Data sheet FGL35N120FTDTU.pdf
Voltage - Collector Emitter Breakdown (Max) 1200V Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 35A
Test Condition 600V, 35A, 10 Ohm, 15V Td (on/off) @ 25°C 34ns/172ns
Switching Energy 2.5mJ (on), 1.7mJ (off) Supplier Device Package TO-264
Series - Reverse Recovery Time (trr) 337ns
Power - Max 368W Packaging Tube
Package / Case TO-264-3, TO-264AA Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type Standard
IGBT Type Trench Field Stop Gate Charge 210nC
Detailed Description IGBT Trench Field Stop 1200V 70A 368W Through Hole TO-264 Current - Collector Pulsed (Icm) 105A
Current - Collector (Ic) (Max) 70A
