ASSMANN WSW Components

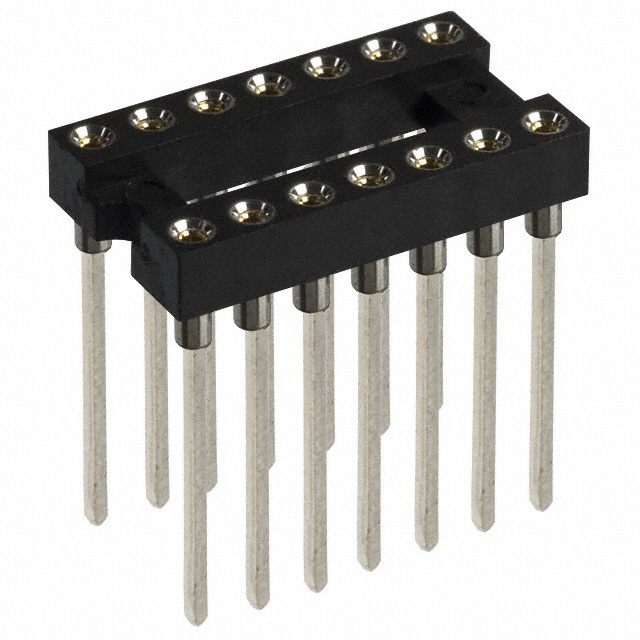

| Part Number | AR 14 HZW/TN | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40317 pcs | Data sheet | AR 14 HZW/TN.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | - |
| Termination | Wire Wrap | Series | - |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | AE10047 AE10047INACTIVE-ND AE7114 AE7114-ND AR 14-HZW/TN AR-14-HZW/TN AR14-HZW AR14-HZW/T AR14-HZW/T-R AR14HZWTR |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
