0545500871

Affinity Medical Technologies - a Molex company

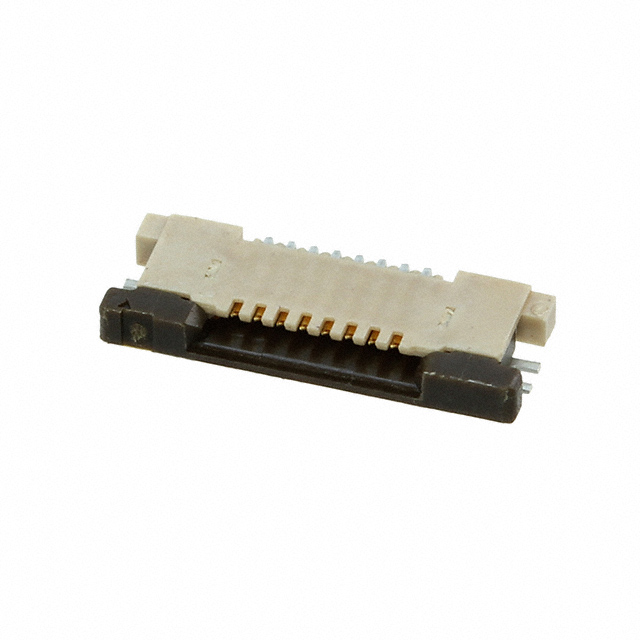

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545500871
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 8POS 0.50MM R/A
Datasheets:	1.0545500871.pdf 2.0545500871.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57081 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57081 pcs

Reference Price (In US Dollars)

1 pcs: $0.625

10 pcs: $0.568

25 pcs: $0.533

50 pcs: $0.51

100 pcs: $0.487

250 pcs: $0.44

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545500871

Part Number	0545500871	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 8POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57081 pcs	Data sheet	1.0545500871.pdf 2.0545500871.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	WM8822DKR
Operating Temperature	-20°C ~ 85°C	Number of Positions	8
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP)	Housing Color	-
Height Above Board	0.047" (1.20mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	8 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
