22-17-3062

Affinity Medical Technologies - a Molex company

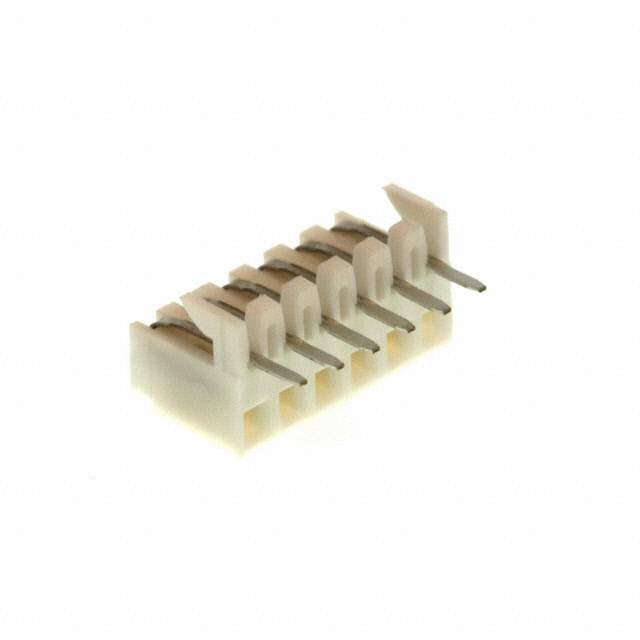

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22-17-3062
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 6POS .100 VERT PCB
Datasheets:	1.22-17-3062.pdf 2.22-17-3062.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	77737 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 77737 pcs

Reference Price (In US Dollars)

1 pcs: $0.386

10 pcs: $0.34

100 pcs: $0.294

500 pcs: $0.24

1000 pcs: $0.214

5000 pcs: $0.187

10000 pcs: $0.178

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.386

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22-17-3062

Part Number	22-17-3062	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 6POS .100 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77737 pcs	Data sheet	1.22-17-3062.pdf 2.22-17-3062.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Board or Cable	Series	KK 4455
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tray	Other Names	0022-17-3062 0022-17-3062-E 0022173062 0022173062-E 22-17-3062-E 22-17-3062-P 22-17-3062-TR189 22-17-3062-TR240 22173062 22173062-E A-4455-BH 06 D(208) A-4455-BH06D(208) WM3226
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.311" (7.90mm)	Insulation Color	White
Ingress Protection	-	Features	Board Hooks
Fastening Type	Push-Pull	Detailed Description	6 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold
Current Rating	2.5A	Contact Type	Non-Gendered
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.132" (3.35mm)	Contact Finish Thickness - Post	50.0µin (1.27µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle, Bottom Entry
Applications	Automotive, General Purpose, Medical, Telecommunications
