PB223-156.25M

Connor-Winfield

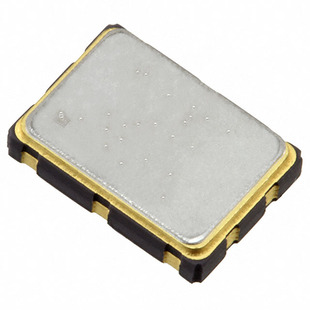

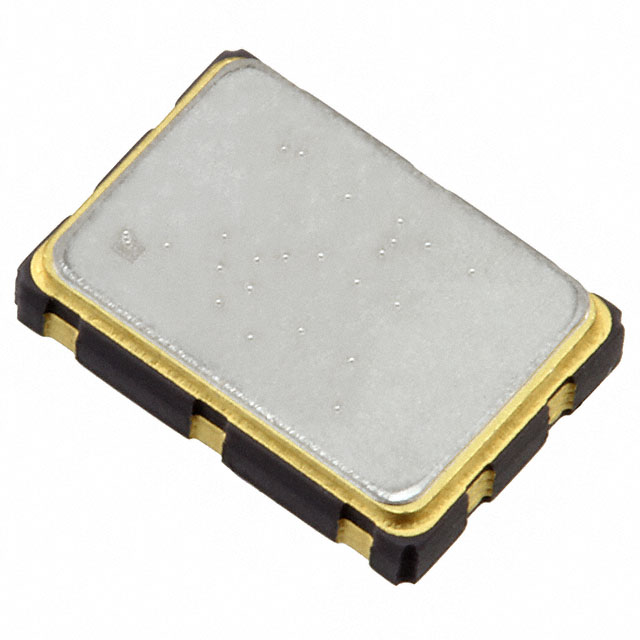

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PB223-156.25M
Manufacturer/Brand:	Connor-Winfield
Product description	OSC XO 156.25MHZ LVPECL SMD
Datasheets:	PB223-156.25M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10768 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10768 pcs

Reference Price (In US Dollars)

250 pcs: $3.196

500 pcs: $3.082

750 pcs: $2.854

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.196

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PB223-156.25M

Part Number	PB223-156.25M	Manufacturer	Connor-Winfield
Description	OSC XO 156.25MHZ LVPECL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10768 pcs	Data sheet	PB223-156.25M.pdf
Voltage - Supply	3.3V	Type	XO (Standard)
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)	Series	PB
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	6-SMD, No Lead	Output	LVPECL
Other Names	CW847TR	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.069" (1.75mm)
Function	Enable/Disable	Frequency Stability	±50ppm
Frequency	156.25MHz	Detailed Description	156.25MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Current - Supply (Max)	50mA	Current - Supply (Disable) (Max)	12mA (Typ)
Base Resonator	Crystal
