AH1815-P-A

Diodes Incorporated

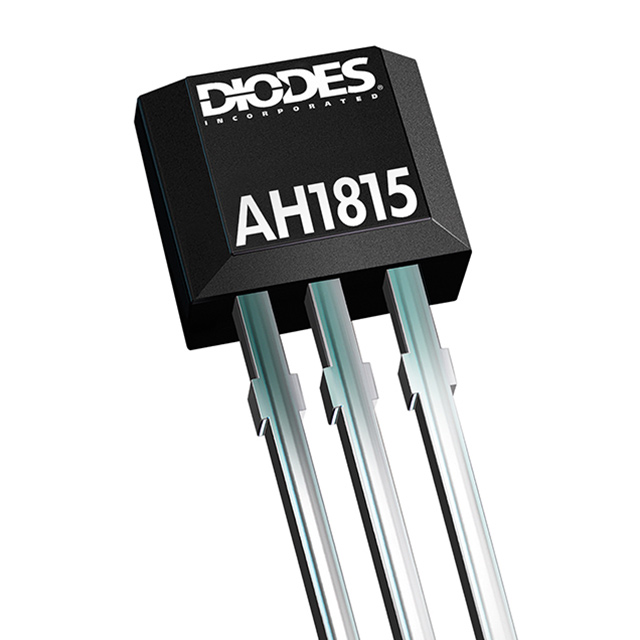

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AH1815-P-A
Manufacturer/Brand:	Diodes Incorporated
Product description	MAGNETIC SWITCH OMNIPOLAR 3SIP
Datasheets:	AH1815-P-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	316372 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 316372 pcs

Reference Price (In US Dollars)

4000 pcs: $0.092

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.092

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AH1815-P-A

Part Number	AH1815-P-A	Manufacturer	Diodes Incorporated
Description	MAGNETIC SWITCH OMNIPOLAR 3SIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	316372 pcs	Data sheet	AH1815-P-A.pdf
Voltage - Supply	2.5 V ~ 5.5 V	Test Condition	-40°C ~ 125°C
Technology	Hall Effect	Supplier Device Package	3-SIP
Series	-	Sensing Range	±54mT Trip, ±49mT Release
Polarization	Either	Packaging	Tape & Box (TB)
Package / Case	3-SIP, Formed Leads	Output Type	Open Drain
Other Names	AH1815-P-ADI	Operating Temperature	-40°C ~ 125°C (TA)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Omnipolar Switch	Features	Sleep Mode
Detailed Description	Digital Switch Omnipolar Switch Open Drain Hall Effect 3-SIP	Current - Supply (Max)	12mA
Current - Output (Max)	2.5mA
