HomeProductsDiscrete Semiconductor ProductsTransistors - IGBTs - ModulesVS-ETL015Y120H

VS-ETL015Y120H

Electro-Films (EFI) / VishayElectro-Films (EFI) / Vishay

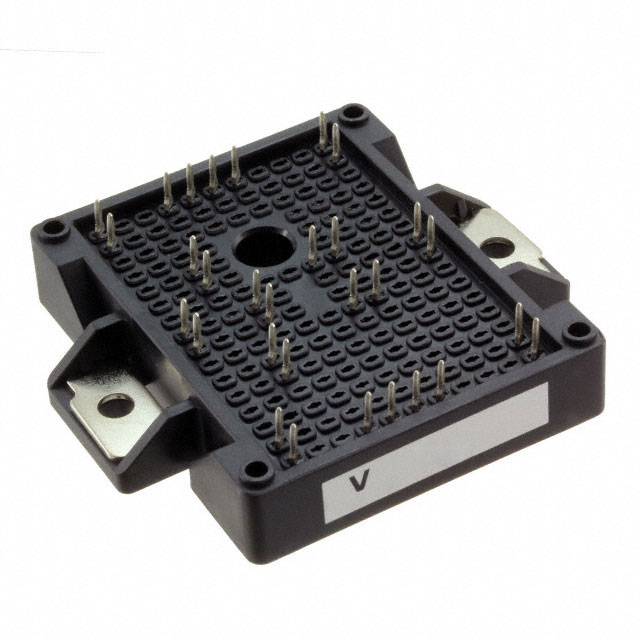

VS-ETL015Y120H Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: VS-ETL015Y120H
Manufacturer/Brand: Electro-Films (EFI) / Vishay
Product description IGBT 1200V 22A 89W EMIPAK-2B
Datasheets: VS-ETL015Y120H.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1222 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1222 pcs
Reference Price (In US Dollars)
1 pcs
$28.74
10 pcs
$27.304
25 pcs
$26.585
100 pcs
$24.609
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$28.74

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of VS-ETL015Y120H

Part Number VS-ETL015Y120H Manufacturer Electro-Films (EFI) / Vishay
Description IGBT 1200V 22A 89W EMIPAK-2B Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1222 pcs Data sheet VS-ETL015Y120H.pdf
Voltage - Collector Emitter Breakdown (Max) 1200V Vce(on) (Max) @ Vge, Ic 3.03V @ 15V, 15A
Supplier Device Package EMIPAK-2B Series -
Power - Max 89W Package / Case EMIPAK-2B
Other Names VS-ETL015Y120H-ND
VS-ETL015Y120HGI
VSETL015Y120H		 Operating Temperature 150°C (TJ)
NTC Thermistor Yes Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce 1.07nF @ 30V Input Standard
IGBT Type Trench Detailed Description IGBT Module Trench 1200V 22A 89W Chassis Mount EMIPAK-2B
Current - Collector Cutoff (Max) 75µA Current - Collector (Ic) (Max) 22A
