78J05T

Grayhill, Inc.Grayhill, Inc.

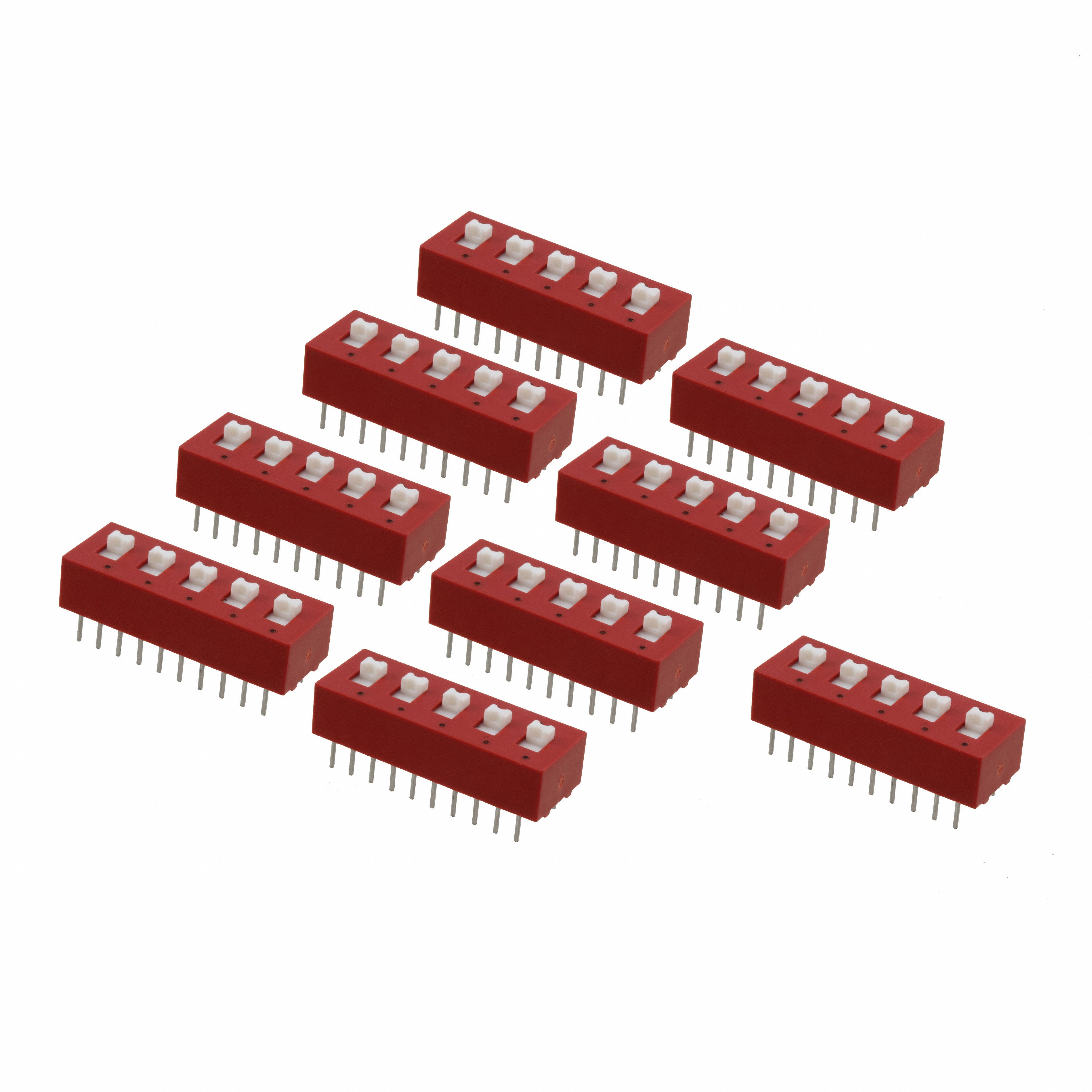

78J05T Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 78J05T
Manufacturer/Brand: Grayhill, Inc.
Product description SWITCH SLIDE DIP SPDT 150MA 30V
Datasheets: 78J05T.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 19041 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 19041 pcs
Reference Price (In US Dollars)
1 pcs
$2.002
18 pcs
$1.915
27 pcs
$1.828
54 pcs
$1.741
108 pcs
$1.567
252 pcs
$1.393
504 pcs
$1.349
1008 pcs
$1.218
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$2.002

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 78J05T

Part Number 78J05T Manufacturer Grayhill, Inc.
Description SWITCH SLIDE DIP SPDT 150MA 30V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 19041 pcs Data sheet 78J05T.pdf
Washable No Voltage Rating 30VDC
Termination Style PC Pin Series 78
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names 78J05T-ND
GH7740
Operating Temperature -40°C ~ 85°C
Number of Positions 5 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 2,000 Cycles
Length 1.080" (27.43mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Above Board 0.315" (8.00mm) Features -
Electrical Life 2,000 Cycles Detailed Description Dip Switch SPDT 5 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
Current Rating 150mA Contact Material Copper Alloy
Contact Finish Gold Circuit SPDT
Body Material Thermoplastic Actuator Type Slide (Standard)
Actuator Level Raised
