D01-9952042

Harwin

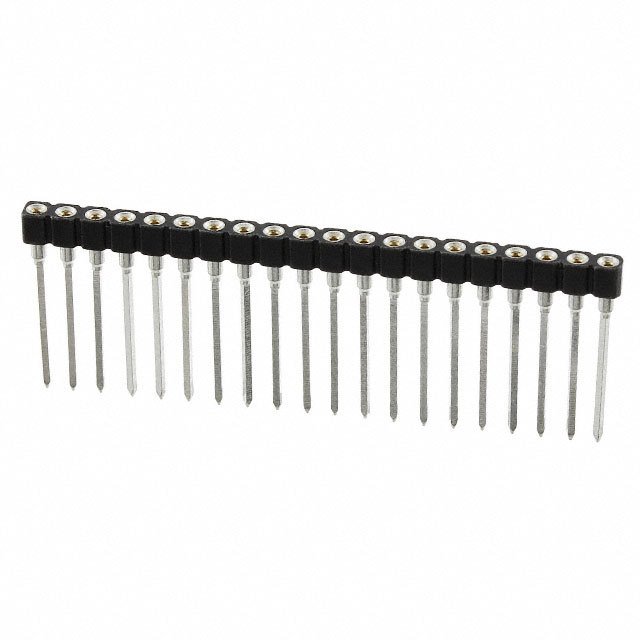

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D01-9952042
Manufacturer/Brand:	Harwin
Product description	CONN SOCKET SIP 20POS GOLD
Datasheets:	1.D01-9952042.pdf 2.D01-9952042.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23679 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23679 pcs

Reference Price (In US Dollars)

1 pcs: $1.545

10 pcs: $1.484

125 pcs: $1.236

500 pcs: $1.051

1000 pcs: $0.896

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.545

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D01-9952042

Part Number	D01-9952042	Manufacturer	Harwin
Description	CONN SOCKET SIP 20POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23679 pcs	Data sheet	1.D01-9952042.pdf 2.D01-9952042.pdf
Type	SIP	Termination Post Length	0.510" (12.95mm)
Termination	Wire Wrap	Series	D01-995
Pitch - Post	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Bulk	Other Names	952-1898 D019952042
Operating Temperature	-55°C ~ 125°C	Number of Positions or Pins (Grid)	20 (1 x 20)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Features	-
Current Rating	1A	Contact Resistance	10 mOhm
Contact Material - Post	Brass	Contact Material - Mating	Beryllium Copper
Contact Finish Thickness - Post	196.9µin (5.00µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
