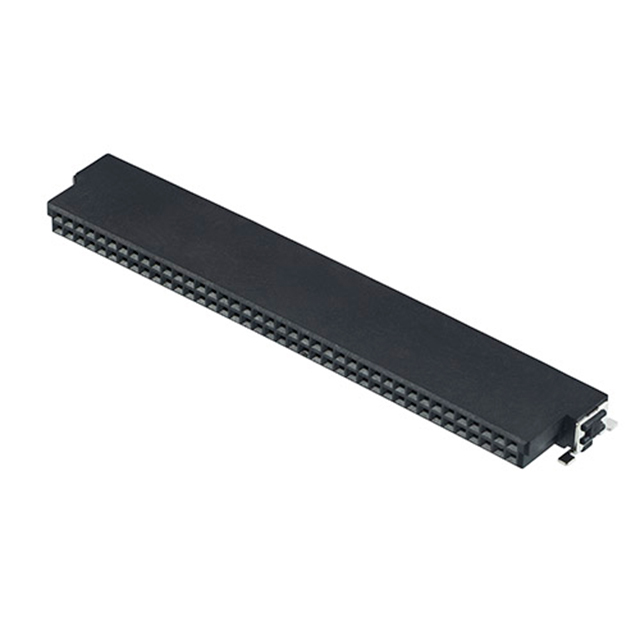

Part Number | M55-6108042R | Manufacturer | Harwin |
---|---|---|---|
Description | CONN RCPT 1.27MM SMD R/A 80POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 22638 pcs | Data sheet | 1.M55-6108042R.pdf2.M55-6108042R.pdf3.M55-6108042R.pdf4.M55-6108042R.pdf |
Voltage Rating | 100VAC | Termination | Solder |
Style | Board to Board | Series | Archer Kontrol |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Tape & Reel (TR) | Other Names | 952-3866-2 |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 80 |
Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.146" (3.70mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Guide, Solder Retention |
Fastening Type | Latch Holder | Detailed Description | 80 Position Receptacle Connector Surface Mount, Right Angle |
Current Rating | 1.2A | Contact Type | Female Socket |
Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
Contact Finish Thickness - Mating | 1.00µin (0.025µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | Automotive, General Purpose, Industrial |
