BA6247

LAPIS Semiconductor

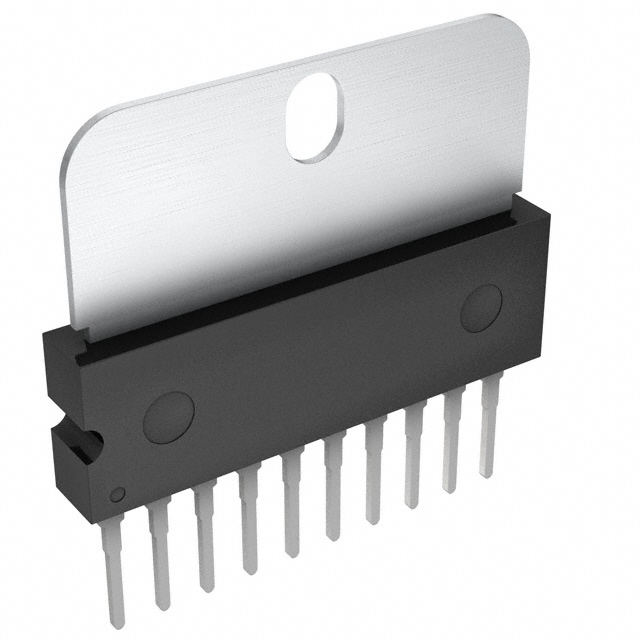

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BA6247
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC MOTOR DRIVER PAR 10HSIP
Datasheets:	BA6247.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20469 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20469 pcs

Reference Price (In US Dollars)

1 pcs: $1.732

10 pcs: $1.545

25 pcs: $1.391

100 pcs: $1.267

250 pcs: $1.144

500 pcs: $1.026

1000 pcs: $0.865

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.732

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BA6247

Part Number	BA6247	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DRIVER PAR 10HSIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20469 pcs	Data sheet	BA6247.pdf
Voltage - Supply	8 V ~ 18 V	Voltage - Load	8 V ~ 18 V
Technology	Bipolar	Supplier Device Package	10-HSIP
Step Resolution	-	Series	-
Packaging	Tube	Package / Case	10-SIP Exposed Tab
Output Configuration	Half Bridge (3)	Operating Temperature	-25°C ~ 150°C (TJ)
Mounting Type	Through Hole	Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Bipolar Parallel 10-HSIP
Current - Output	1A	Base Part Number	BA6247
Applications	General Purpose
