LSHD-7801

Lite-On, Inc.

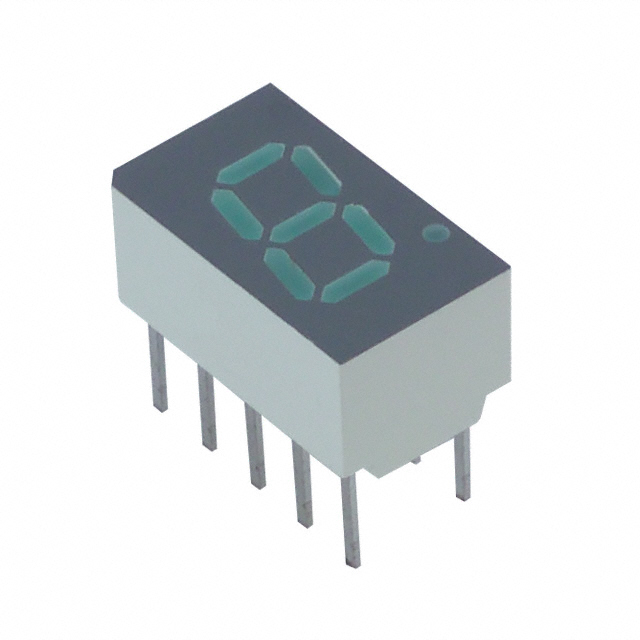

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LSHD-7801
Manufacturer/Brand:	Lite-On, Inc.
Product description	LED 7-SEG .3" GREEN 565NM CA
Datasheets:	LSHD-7801.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62942 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62942 pcs

Reference Price (In US Dollars)

1 pcs: $0.562

10 pcs: $0.457

39 pcs: $0.351

117 pcs: $0.316

273 pcs: $0.281

507 pcs: $0.239

1014 pcs: $0.197

2535 pcs: $0.187

5031 pcs: $0.183

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.562

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LSHD-7801

Part Number	LSHD-7801	Manufacturer	Lite-On, Inc.
Description	LED 7-SEG .3" GREEN 565NM CA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62942 pcs	Data sheet	LSHD-7801.pdf
Wavelength - Peak	565nm	Voltage - Forward (Vf) (Typ)	2.1V
Size / Dimension	0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)	Series	-
Power Dissipation (Max)	75mW	Packaging	Tube
Package / Case	10-DIP (0.200", 5.08mm)	Other Names	160-1577-5 LSHD7801
Number of Characters	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	1.6mcd	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Display Type	7-Segment	Digit/Alpha Size	0.30" (7.62mm)
Detailed Description	Character LED Display Module Green 7-Segment 1 Character Common Anode 2.1V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm)	Current - Test	20mA
Common Pin	Common Anode	Color	Green
