APTGT600U120D4G

Microsemi

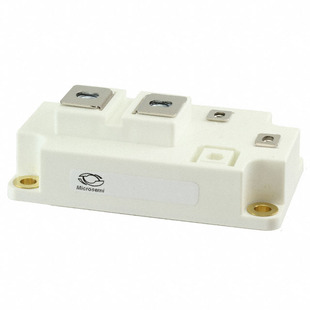

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGT600U120D4G
Manufacturer/Brand:	Microsemi
Product description	IGBT 1200V 900A 2500W D4
Datasheets:	1.APTGT600U120D4G.pdf 2.APTGT600U120D4G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	608 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 608 pcs

Reference Price (In US Dollars)

1 pcs: $53.28

10 pcs: $50.708

25 pcs: $48.871

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$53.28

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGT600U120D4G

Part Number	APTGT600U120D4G	Manufacturer	Microsemi
Description	IGBT 1200V 900A 2500W D4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	608 pcs	Data sheet	1.APTGT600U120D4G.pdf 2.APTGT600U120D4G.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 600A
Supplier Device Package	D4	Series	-
Power - Max	2500W	Package / Case	D4
Other Names	APTGT600U120D4GMI APTGT600U120D4GMI-ND	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	40nF @ 25V	Input	Standard
IGBT Type	Trench Field Stop	Detailed Description	IGBT Module Trench Field Stop Single 1200V 900A 2500W Chassis Mount D4
Current - Collector Cutoff (Max)	5mA	Current - Collector (Ic) (Max)	900A
Configuration	Single
