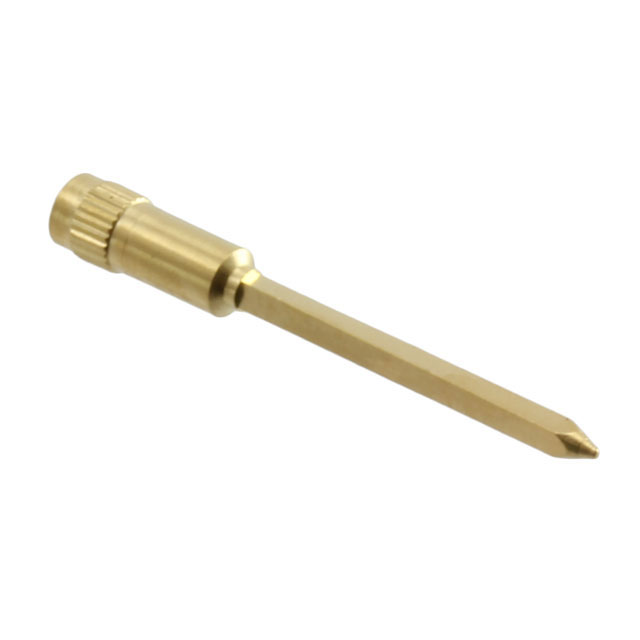

Part Number | 2297-2-17-15-16-27-02-0 | Manufacturer | Mill-Max |
---|---|---|---|
Description | CONN PIN RCPT .022-.034 KNURL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 176133 pcs | Data sheet | 1.2297-2-17-15-16-27-02-0.pdf2.2297-2-17-15-16-27-02-0.pdf |
Termination | Press-Fit, Knurled | Tail Type | Wire Wrap |
Tail Diameter | 0.025" (0.64mm) Square | Socket Depth | 0.150" (3.81mm) |
Series | 2297 | Pin Hole Diameter | 0.051" (1.30mm) |
Packaging | Bulk | Other Names | 2297-217151627020 2297-217151627020-ND 2297217151627020 ED1245 |
Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.067" (1.70mm) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length - Overall | 0.545" (13.84mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
Flange Diameter | 0.070" (1.77mm) | Features | - |
Detailed Description | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Wire Wrap Press-Fit, Knurled | Contact Material | Beryllium Copper |
Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
Board Thickness | - | Accepts Square Pin Size | - |
Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
