A23EP

NKK Switches

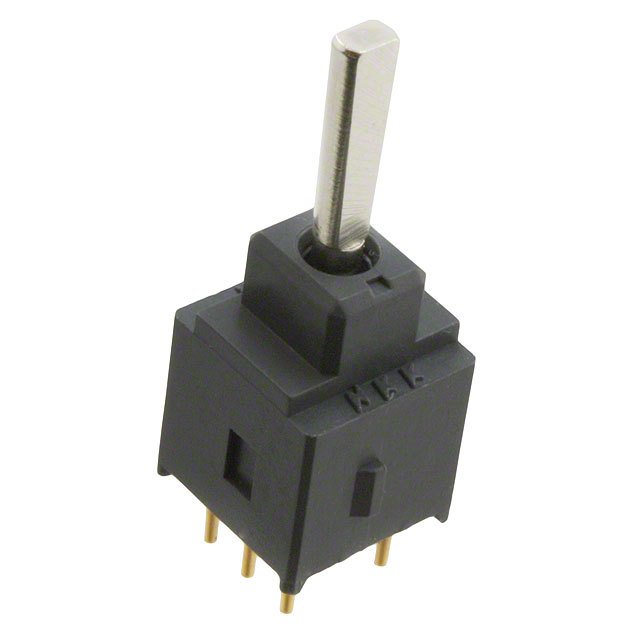

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A23EP
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets:	A23EP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17981 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17981 pcs

Reference Price (In US Dollars)

1 pcs: $1.932

10 pcs: $1.84

25 pcs: $1.794

50 pcs: $1.748

100 pcs: $1.702

250 pcs: $1.564

500 pcs: $1.38

1000 pcs: $1.242

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A23EP

Part Number	A23EP	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17981 pcs	Data sheet	A23EP.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	A	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-2602 A23EP-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded, Square
Actuator Type	Flatted	Actuator Material	Brass, Nickel Plated
Actuator Length	10.00mm
