HS16-2SN

NKK Switches

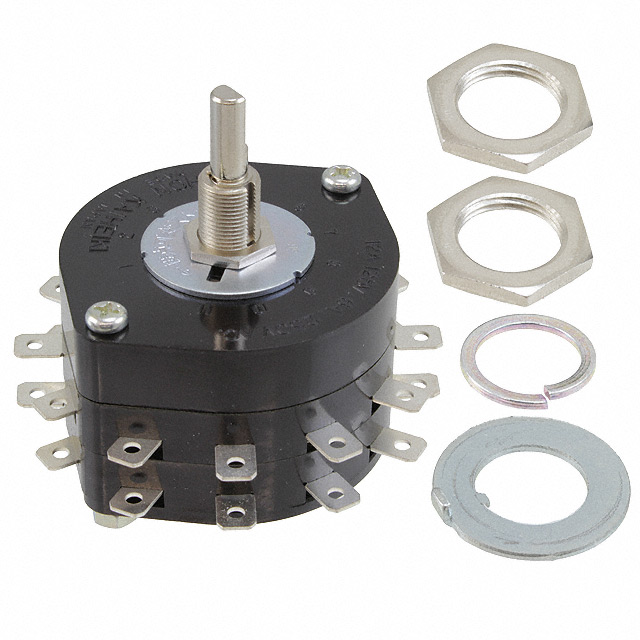

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HS16-2SN
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROTARY 2-11POS 12A 125V
Datasheets:	HS16-2SN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3245 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3245 pcs

Reference Price (In US Dollars)

1 pcs: $9.423

10 pcs: $8.785

25 pcs: $8.658

50 pcs: $8.53

100 pcs: $7.512

250 pcs: $7.257

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$9.423

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HS16-2SN

Part Number	HS16-2SN	Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 12A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3245 pcs	Data sheet	HS16-2SN.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Series	HS	Panel Cutout Dimensions	Circular - 10.30mm Dia
Other Names	360-3042 HS16-2SN-ND	Operating Force	60 ~ 70gfm
Number of Positions	2 ~ 11	Number of Poles per Deck	1
Number of Decks	2	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Adjustable	Features	-
Detailed Description	Rotary Switch 2 ~ 11 Position SP11T 12A (AC) 125VAC Panel Mount	Depth Behind Panel	41.50mm
Current Rating	12A (AC)	Contact Timing	Shorting (MBB)
Contact Material	Phosphor Bronze	Contact Finish	-
Circuit per Deck	SP11T	Angle of Throw	30°
Actuator Type	Flatted (6mm Dia)	Actuator Length	15.00mm
