M2022LL1W03

NKK Switches

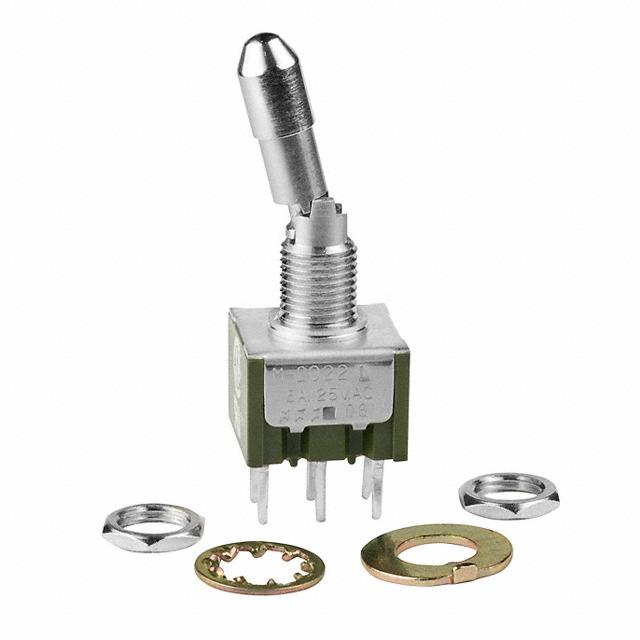

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2022LL1W03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 6A 125V
Datasheets:	M2022LL1W03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14223 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14223 pcs

Reference Price (In US Dollars)

1 pcs: $2.469

10 pcs: $2.346

25 pcs: $2.284

50 pcs: $2.222

100 pcs: $2.161

250 pcs: $2.037

500 pcs: $1.728

1000 pcs: $1.636

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.469

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2022LL1W03

Part Number	M2022LL1W03	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14223 pcs	Data sheet	M2022LL1W03.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-On
Series	M	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	M2022LL1W03-RO M2022LL1W03-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	6A (AC), 4A (DC)
Circuit	DPDT	Bushing Thread	1/4-40
Actuator Type	Locking Lever	Actuator Material	Brass, Chrome Plated
Actuator Length	16.50mm
