AVL32053-A

Panasonic

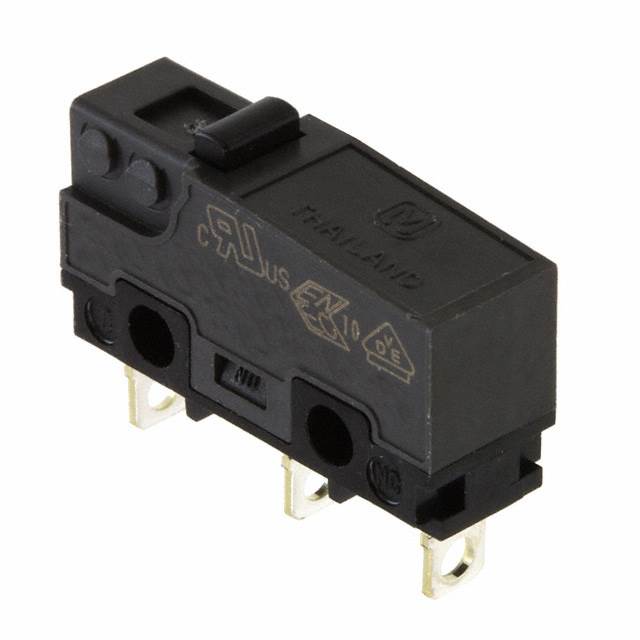

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AVL32053-A
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 5A 125V
Datasheets:	AVL32053-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50753 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 50753 pcs

Reference Price (In US Dollars)

1 pcs: $0.688

10 pcs: $0.65

25 pcs: $0.624

50 pcs: $0.598

100 pcs: $0.572

250 pcs: $0.455

500 pcs: $0.416

1000 pcs: $0.403

5000 pcs: $0.364

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.688

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AVL32053-A

Part Number	AVL32053-A	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50753 pcs	Data sheet	AVL32053-A.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	AVL3	Release Force	20gf
Pretravel	0.024" (0.6mm)	Packaging	Bulk
Overtravel	0.015" (0.4mm)	Other Names	255-4189
Operating Temperature	-25°C ~ 85°C	Operating Position	0.330" (8.4mm)
Operating Force	150gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	50,000 Cycles
Differential Travel	0.004" (0.1mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
