20M020D1B

Portescap

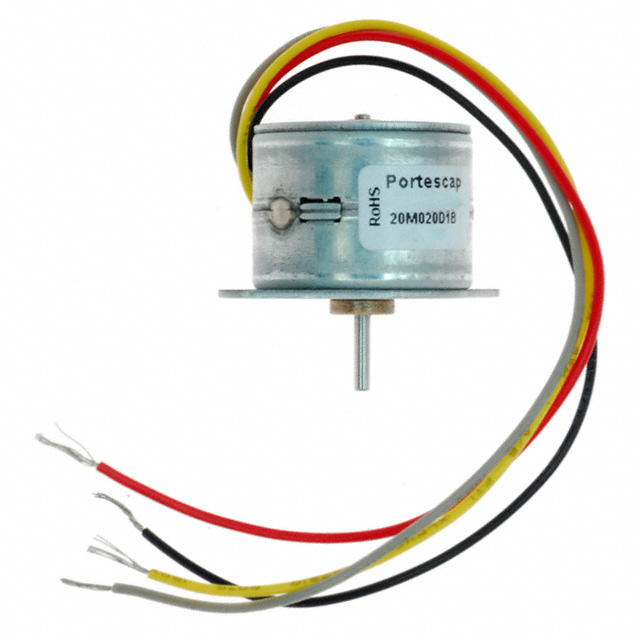

Image may be representation. See specifications for product details.

Product Overview

Part Number:	20M020D1B
Manufacturer/Brand:	Portescap
Product description	STEPPER MOTOR PM BIPOLAR 5V
Datasheets:	1.20M020D1B.pdf 2.20M020D1B.pdf 3.20M020D1B.pdf 4.20M020D1B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4739 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4739 pcs

Reference Price (In US Dollars)

1 pcs: $8.06

5 pcs: $7.817

10 pcs: $7.329

25 pcs: $7.084

50 pcs: $6.84

100 pcs: $6.596

250 pcs: $6.498

500 pcs: $6.351

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.06

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 20M020D1B

Part Number	20M020D1B	Manufacturer	Portescap
Description	STEPPER MOTOR PM BIPOLAR 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4739 pcs	Data sheet	1.20M020D1B.pdf 2.20M020D1B.pdf 3.20M020D1B.pdf 4.20M020D1B.pdf
Weight	0.052 lb (23.59g)	Voltage - Rated	5VDC
Type	Permanent Magnet	Torque - Holding (oz-in / mNm)	1.55 / 10.95
Termination Style	Wire Leads	Steps per Revolution	20
Step Angle	18°	Size / Dimension	Round - 0.807" Dia (20.50mm)
Series	20M	Rotor Inertia	0.41gcm²
Other Names	403-1002	Operating Temperature	-20°C ~ 70°C
Mounting Hole Spacing	0.984" (25.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.335" (8.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.059" (1.50mm)
Detailed Description	Bipolar Stepper Motor 250mA 5VDC	Current Rating	250mA
Coil Type	Bipolar	Coil Resistance	20 Ohms
Approvals	-	Accuracy	±12%
