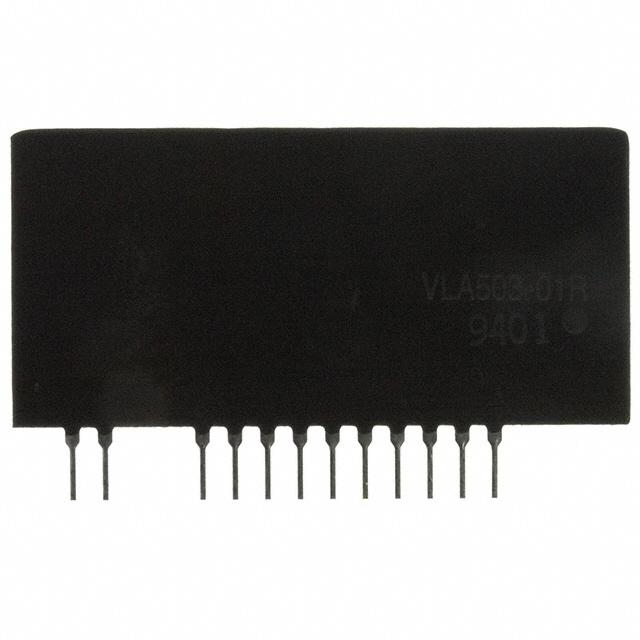

Part Number | VLA503-01 | Manufacturer | Powerex, Inc. |
---|---|---|---|
Description | IC IGBT GATE DRIVER INV/AC SERVO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6529 pcs | Data sheet | VLA503-01.pdf |
Voltage - Supply | 14 V ~ 15 V | Supplier Device Package | Module |
Series | - | Rise / Fall Time (Typ) | 300ns, 300ns |
Packaging | Bulk | Package / Case | 12-SIP |
Other Names | 835-1065 VLA503-01R VLA50301 |
Operating Temperature | -20°C ~ 60°C (TA) |
Number of Drivers | 1 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Logic Voltage - VIL, VIH | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Non-Inverting |
Gate Type | IGBT | Driven Configuration | Low-Side |
Detailed Description | Low-Side Gate Driver IC Non-Inverting Module | Current - Peak Output (Source, Sink) | 5A, 5A |
Channel Type | Single |
