23Z467SM

Pulse Electronics Corporation

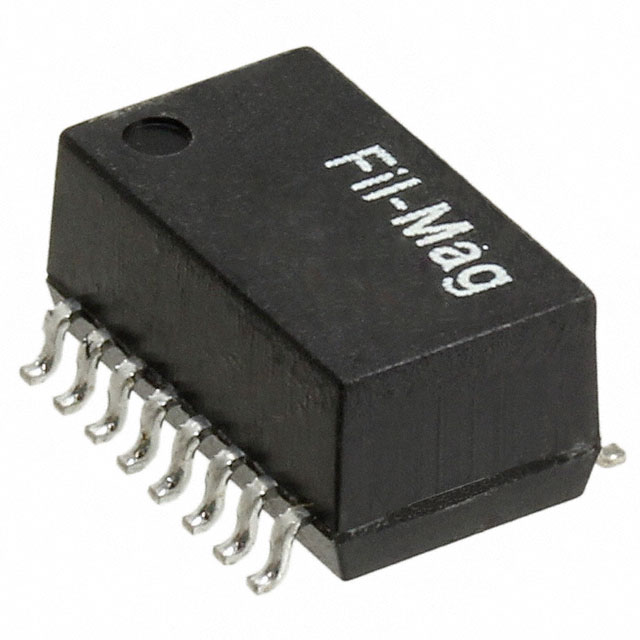

Image may be representation. See specifications for product details.

Product Overview

Part Number:	23Z467SM
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:2CT TX 1CT:1CT RX
Datasheets:	23Z467SM.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	18878 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18878 pcs

Reference Price (In US Dollars)

1 pcs: $1.879

10 pcs: $1.428

40 pcs: $1.39

80 pcs: $1.278

120 pcs: $1.203

280 pcs: $1.165

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.879

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 23Z467SM

Part Number	23Z467SM	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:2CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	18878 pcs	Data sheet	23Z467SM.pdf
Turns Ratio - Primary:Secondary	1CT:2CT Transmitter, 1CT:1CT Receiver	Transformer Type	LAN 10G Base-T
Size / Dimension	0.450" L x 0.265" W (11.43mm x 6.73mm)	Series	-
Packaging	Tube	Other Names	23Z467SM-ND 553-3894-5
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Inductance	140µH	Height - Seated (Max)	0.215" (5.46mm)
Energy Time (E.T.)	-
