HDX8006NL

Pulse Electronics Corporation

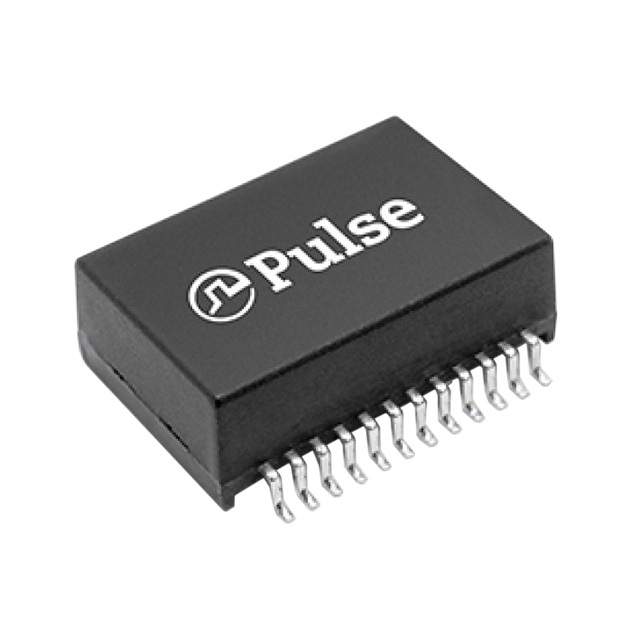

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDX8006NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	MDL,SIN, HDBASET, 140W, SMT
Datasheets:	HDX8006NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8980 pcs

Reference Price (In US Dollars)

1 pcs: $3.839

10 pcs: $2.94

25 pcs: $2.491

50 pcs: $2.45

100 pcs: $2.327

250 pcs: $2.303

500 pcs: $2.27

1000 pcs: $2.246

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.839

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDX8006NL

Part Number	HDX8006NL	Manufacturer	Pulse Electronics Corporation
Description	MDL,SIN, HDBASET, 140W, SMT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8980 pcs	Data sheet	HDX8006NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1:1
Transformer Type	HDBase-T	Size / Dimension	0.715" L x 0.480" W (18.16mm x 12.20mm)
Series	-	Other Names	1840-1292-5
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	120µH	Height - Seated (Max)	0.260" (6.60mm)
Energy Time (E.T.)	-
