PF0552.152NL

Pulse Electronics CorporationPulse Electronics Corporation

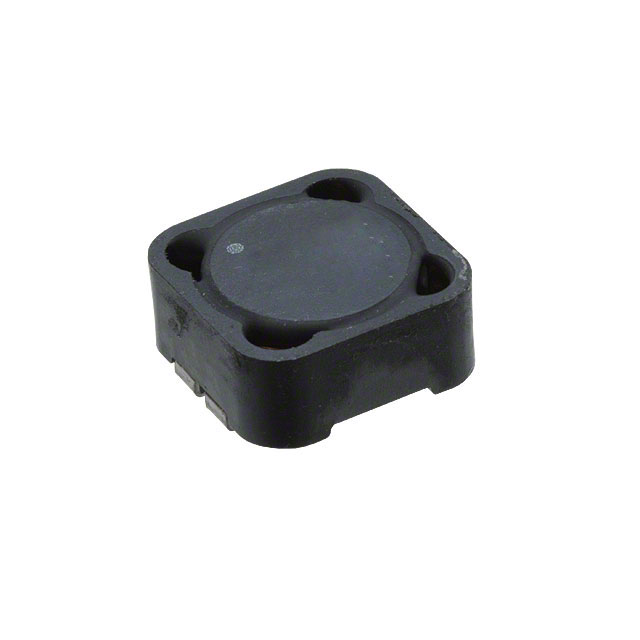

PF0552.152NL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PF0552.152NL
Manufacturer/Brand: Pulse Electronics Corporation
Product description INDUCT ARRAY 2 COIL 1.5UH SMD
Datasheets: PF0552.152NL.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 43142 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 43142 pcs
Reference Price (In US Dollars)
1 pcs
$0.685
60 pcs
$0.495
120 pcs
$0.443
540 pcs
$0.358
1020 pcs
$0.327
2520 pcs
$0.316
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.685

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PF0552.152NL

Part Number PF0552.152NL Manufacturer Pulse Electronics Corporation
Description INDUCT ARRAY 2 COIL 1.5UH SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 43142 pcs Data sheet PF0552.152NL.pdf
Tolerance ±20% Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Shielding Shielded Series PF0552NL
Ratings - Packaging Tray
Package / Case Nonstandard Other Names 553-3030
Operating Temperature -40°C ~ 125°C Number of Coils 2
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Inductance - Connected In Series 5.9µH
Inductance - Connected In Parallel 1.5µH Height 0.236" (6.00mm)
Detailed Description Shielded 2 Coil Inductor Array 5.9µH Inductance - Connected in Series 1.5µH Inductance - Connected in Parallel 2.9 mOhm Max DC Resistance (DCR) - Parallel 12.4A Nonstandard DC Resistance (DCR) - Series 12 mOhm Max
DC Resistance (DCR) - Parallel 2.9 mOhm Max Current Saturation - Series 9.2A
Current Saturation - Parallel 18.4A Current Rating - Series 6.2A
Current Rating - Parallel 12.4A
