L292H

STMicroelectronics

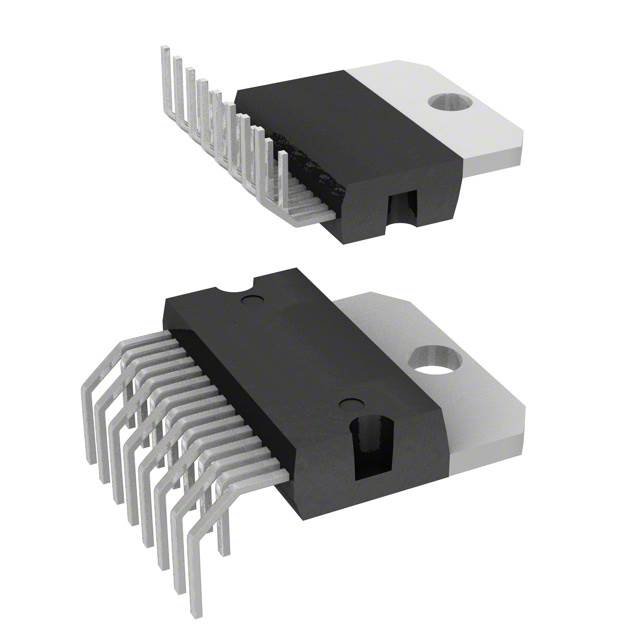

Image may be representation. See specifications for product details.

Product Overview

Part Number:	L292H
Manufacturer/Brand:	STMicroelectronics
Product description	IC MOTOR DRIVER PAR 15MULTIWATT
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17548 pcs

Reference Price (In US Dollars)

500 pcs: $1.905

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.905

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of L292H

Part Number	L292H	Manufacturer	STMicroelectronics
Description	IC MOTOR DRIVER PAR 15MULTIWATT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17548 pcs	Data sheet
Voltage - Supply	18 V ~ 36 V	Voltage - Load	18 V ~ 36 V
Technology	Bipolar	Supplier Device Package	15-Multiwatt
Step Resolution	-	Series	-
Packaging	Tube	Package / Case	15-SSIP Exposed Pad, Formed Leads
Output Configuration	Half Bridge (2)	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole	Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Bipolar Parallel 15-Multiwatt
Current - Output	2A	Base Part Number	L292
Applications	General Purpose
